Nantucket Island, Massachusetts, hosts the largest population of breeding Northern Harriers (Circus cyaneus) in the northeastern United States. We analyzed 128 nest sites to determine landscape features influential to habitat selection. We performed a vegetation community use-availability study, and we used 70 GIS-derived landscape metrics to conduct a classification tree analysis. We used the classification tree results to quantify, predict, and map the preferred nesting habitat of harriers islandwide. The vegetation community use-availability study showed that harriers had a preference for herbaceous marsh and shrublands and that they used low vegetation and forested habitats less than expected by availability. Preferred nesting habitat had two classification nodes. The first node represents habitat distant from developed land and roads, out of forests, and in or immediately adjacent to wetlands. The second node represents habitat identical to the first node with respect to distance from high densities of development and forests, but is upland and contains only minimal developed land. We applied the classification tree's criteria to GIS data for the entire island to create an islandwide map of preferred nesting habitat. Although most of the island's preferred nesting habitat is currently preserved (86%), we suggest conserving the remaining unprotected areas to maintain important nesting habitats.
For Northern Harriers (Circus cyaneus) in the northeastern United States, much nesting habitat has been lost to vegetation succession, habitat degradation, and housing development (Serrentino and England 1989, Christiansen and Reinert 1990, Serrentino 1992), resulting in dramatic declines in their breeding numbers over the past few decades (Serrentino 1992). Breeding harriers have been nearly extirpated from mainland Connecticut, Massachusetts, and Rhode Island (Christiansen and Reinert 1990), and in coastal New England as a whole, they are now principally restricted to Cape Cod and offshore islands, including Martha's Vineyard and Nantucket (Christiansen and Reinert 1990, Serrentino 1992). Recent surveys of harrier nests on Nantucket indicate that this island population probably represents the last stronghold for breeding harriers in Massachusetts.
In most of the North American literature, harriers are associated with grassland or wetland habitats (Bildstein and MacWhirter 1996), where they nest on the ground, typically in clumps of taller, denser vegetation in grasslands or on vegetation mats in wetlands (Toland 1985, Grant et al. 1991, Serrentino 1992). On Nantucket, harriers were found nesting across the island in all major community types (herbaceous marsh, low vegetation, and shrubland) with the exception of forest (Bowen 2004). The extensive use of tall, dense shrubland habitats for nesting conflicts with most accounts of harrier nesting habitat, including the characterization of harriers as “obligate grassland species” (Vickery et al. 1999), and suggests that Nantucket's unique ecology may result in alternative nesting strategies.
The goal of this study was to identify the vegetation communities and landscape variables important to nesting harriers on Nantucket. We analyzed harrier selection of nesting habitats with two approaches. First, we performed a vegetation cover use-availability analysis to determine if nesting harriers selected vegetation cover types in proportion to their availability. Second, we calculated landscape metrics quantifying anthropogenic and vegetation features for both harrier nests and random points in the landscape. These landscape metrics were analyzed using a classification tree analysis (Breiman 1984), and the results were used to classify, predict, and map preferred harrier nesting habitat on Nantucket.
STUDY SITE
All fieldwork was conducted on Nantucket Island (70.1°N, 40.3°W), located approximately 40 km south of Cape Cod, Massachusetts. The island is nearly 12 500 ha in total area and is covered by a mosaic of habitats including grasslands, heathlands, shrublands, pine-dominated forests, and anthropogenic environments.
Shrublands and low vegetation (grasslands, heathlands, and intergrades between the two) make up the majority of the island's natural vegetation. Sandplain grasslands on Nantucket are dominated by little bluestem (Schizachyrium scoparium) and Pennsylvania sedge (Carex pensylvanica; Dunwiddie 2001). Nantucket's coastal heathlands resemble grasslands but have a smaller component of forbs and grasses and a greater percentage of dwarf shrubs, especially members of the Ericaceae (heath; Dunwiddie 2001). However, on Nantucket, heathland and grassland communities are often intermixed and not easily distinguished in the field (Dunwiddie et al. 1996). Scrub oak (Quercus ilicifolia) shrublands are dominated by dense thickets of scrub oak that can reach canopy covers of 80%–100% and heights of 2–4 m and often replace grasslands and heathlands not subject to periodic disturbance such as fire, mowing, or grazing (Sorrie and Dunwiddie 1996). Pitch pine (Pinus rigida) forests are a successional stage of sandplain communities characterized by sparse to dense stands of pitch pine, and on Nantucket, replace grasslands, heathlands, and scrub oak. Forested areas occur along roads and in more developed areas of the island. A small portion of the island is wetland habitat dominated by herbaceous marsh. Houses and development are located across the island but concentrated around its north-central section centered on the town of Nantucket.
Nantucket may be particularly attractive to ground-nesting harriers because it is the only large offshore island in Massachusetts without any native carnivorous mammals capable of depredating raptor nests (e.g., red fox [Vulpes vulpes], coyote [Canis latrans], raccoon [Procyon lotor], striped skunk [Mephitis mephitis], and Virginia opossum [Didelphis virginiana]); (Cardoza et al. 1999). Hence, it provides a favorable breeding habitat for the ground-nesting harrier.
METHODS
DATA COLLECTION
We located a total of 140 harrier nests in the breeding seasons of 2000, 2002, and 2003. Twelve sites were within 10 m of a nest used in the previous study year and may have represented reuse by breeding pairs, so were excluded from the dataset. Thus, all 128 nests in our analyses represented unique nesting locations.
For comparison with the nest sites, we generated a set of 1000 random point locations in potential nesting habitat (all portions of the island except obviously unsuitable habitats such as pavement, dirt roads, houses, bare sand, mud, or open water) using Random Point Generator (Sawada 2002). We entered the nest sites and random points into a GIS database along with data layers of roads, buildings, hydrological features (streams, ponds, and wetlands), and vegetation cover types. We converted all GIS data to 5 m grid cells, the minimum mapping unit for our data.
STATISTICAL ANALYSES
We compared vegetation cover use with availability using a chi-square goodness-of-fit analysis to test for nonrandom distribution of nests among vegetation cover types. Land cover preferences were quantified with the Manly-Chesson selectivity index (Manly et al. 1972, Chesson 1978). All statistical analyses were performed in SAS (SAS Institute 2001).
We used Spatial Analyst (ESRI 2002a) and FRAGSTATS (McGarigal and Marks 1995) to calculate landscape metrics (Table 1) that measured both anthropogenic features and landscape vegetation patterns for every nest and random point. At each point, we calculated the size of the surrounding vegetation patch; the vegetation cover type; and distance to the nearest low vegetation, forest, and shrubland patch, hydrological feature, building, and unpaved, paved, and any-surface road. We also calculated the following neighborhood metrics around each point: patch richness; percent cover of water, sand or mud, low vegetation, herbaceous marsh, shrubland, forest, and developed (including agricultural) land; total edge of low vegetation, shrubland, forest, and buildings; road density (both simple and distance-weighted, in which the values of closer features were weighted more heavily than those farther away), and number of buildings. For each point, we calculated these neighborhood metrics at a radius of 200 m, the approximate radius of harrier nesting territories on Nantucket (Bowen 2001), as well as radii of 50 m, 500 m, and 1 km to determine if harriers were responding to the landscape at multiple scales, as reported for other species of raptors (McGrath et al. 2003).

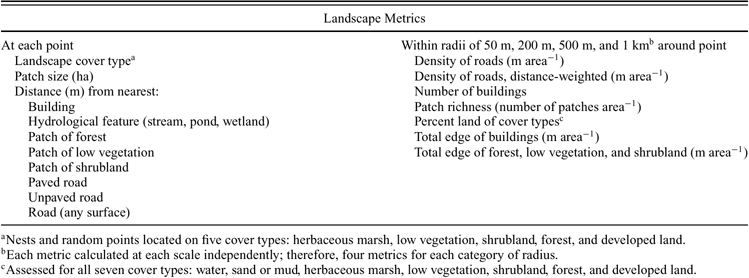

TABLE 1.
Landscape metrics calculated for Northern Harrier nests from 2000, 2002, and 2003 and random points that were used in a classification tree analysis of nesting habitat on Nantucket Island, Massachusetts.
We built our classification tree model using program CART 4.0 (Steinberg and Colla 1997). We computed our model using gini splitting criteria, equal prior probabilities, 10-fold cross validation, and a 1:1 (nest: random point) misclassification cost ratio, and we selected the appropriate-sized tree using the 1 S.E. rule—all parameters designed to create a parsimonious classification tree with high predictive ability (Breiman 1984, De'ath and Fabricius 2000). This procedure selected habitats most frequently used for nest sites but may have excluded some outlier nesting habitat types.
In ArcView (ESRI 2002b), we applied the criteria from the classification model to a map of landscape metrics to obtain a prediction value (nesting or nonnesting habitat) for every grid cell on Nantucket. We mapped these predictions to create a map of preferred nesting habitat.
RESULTS
Our vegetation cover use-availability analysis indicated that harriers on Nantucket do not nest randomly among cover types (χ23 = 33.4, P < 0.001; Table 2). They showed a strong preference for herbaceous marsh and a preference for shrublands. Harriers used low vegetation less and forests far less than expected by availability.

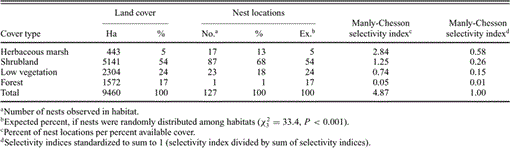

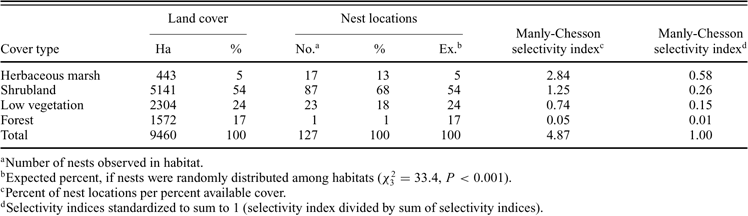

TABLE 2.
The distribution of Northern Harrier nest sites from 2000, 2002, and 2003 among vegetation cover types on Nantucket Island, Massachusetts. According to the Manly-Chesson index (Manly et al. 1972, Chesson 1978), the distribution of nests, which was nonrandom among cover types, reflected a strong preference for herbaceous marsh and a preference for shrubland by harriers; low vegetation and forests were used less and far less, respectively, than expected by availability.
The classification tree analysis showed high stability and generated five splits and six terminal nodes (Fig. 1), with terminal nodes 2 and 3 classified as nesting habitat. Terminal node 2 was defined by four criteria, namely: ≤5% developed land within 50 m, >11 m from forest, ≤0.1 m road (distance-weighted) within 50 m, and ≤3 m from a hydrological feature. Terminal node 3 datapoints shared the first three criteria but were >3 m from hydrological features and had ≤2% developed land within 500 m. In descriptive terms, terminal node 2 represents habitat distant from high densities of developed land and roads, out of forests, and in or immediately adjacent to wetlands. Terminal node 3 represents habitat identical to that of node 2 with respect to distance from high densities of development (developed land and roads) and forests, but the habitat is upland (i.e., not in or immediately adjacent to a wetland) and contains only a minimal percent of developed land within 500 m. This tree's correct cross-validation classification rate for nests was 83% (106 of 128 nests).

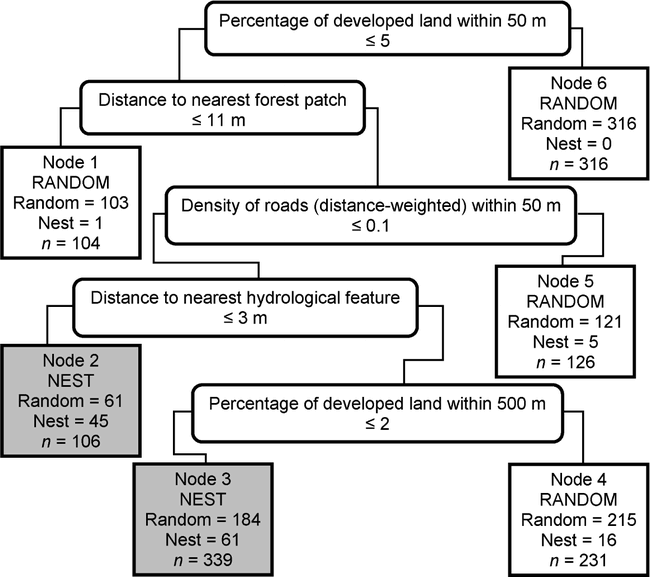

FIGURE 1.
Classification tree of preferred nesting habitat of Northern Harriers from the 2000, 2002, and 2003 breeding seasons on Nantucket Island, Massachusetts—calculated using 70 landscape metrics and a 1:1 misclassification cost ratio for nests to random points—showing splits, terminal nodes, and frequency data. Terminal nodes (1 through 6) are labeled from left to right and classified as NEST (grey) or RANDOM (white). All data points (128 nests and 1000 random points) start at the top node and follow the tree down, going left at decision nodes if they met the criterion and right if they did not, until reaching a terminal node.
We applied the criteria from the classification tree to islandwide grid maps in ArcView (ESRI 2002b) to produce a map of preferred nesting habitat (Fig. 2). Preferred nesting habitat occupied 2649 ha and consisted of terminal nodes 2 (wetlands: 684 ha) and 3 (uplands: 1965 ha; Table 3).

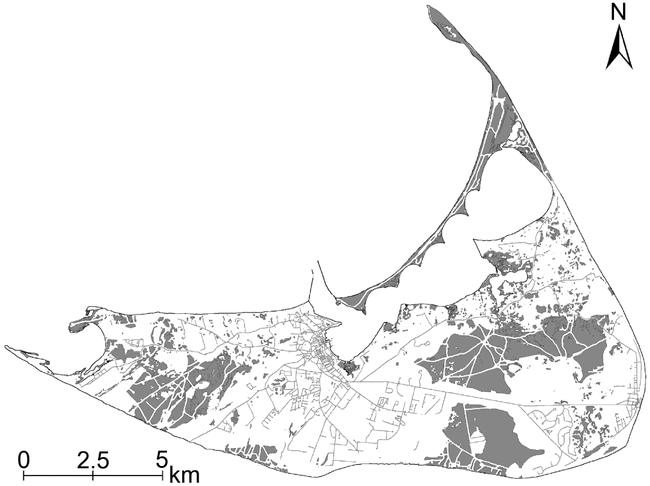

FIGURE 2.
Map of Nantucket Island, Massachusetts showing the distribution of preferred nesting habitat (gray shading) for Northern Harriers from the 2000, 2002, and 2003 breeding seasons based on a classification tree analysis of nest-landscape relationships. Paved roads are shown for reference.

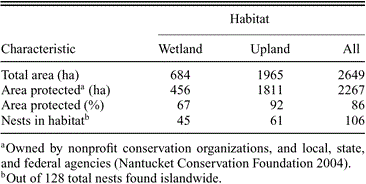

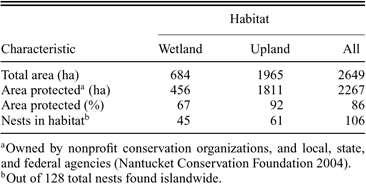

TABLE 3.
Characteristics of preferred nesting habitat of Northern Harriers on Nantucket Island, Massachusetts, based on a classification tree analysis of nests from 2000, 2002, and 2003 and showing total area, area protected, percent protected, and total number of nests in wetland, upland, and all habitat.
DISCUSSION
Our finding from the use-availability analysis, that harriers on Nantucket strongly preferred the herbaceous marsh cover type for nesting habitat, agrees with many previous studies that report harriers using wetlands (Simmons and Smith 1985, Grant et al. 1991, Redpath et al. 1998). Although harriers are known to commonly nest in clumps of taller, denser vegetation in grasslands (Toland 1985, Grant et al. 1991), their extensive use of tall, dense shrubland has rarely been documented in previous studies, with the notable exception of coastal Massachusetts shrublands reported by Christiansen and Reinert (1990). This may indicate relatively unusual use of this habitat on Nantucket, Martha's Vineyard, and, to a lesser degree, Cape Cod (RB, unpubl. data). In contrast to other studies, harriers on Nantucket nested in low vegetation less frequently than expected by its availability, which may result from their increased use of shrublands. Otherwise, harriers on Nantucket avoided nesting in mature forested habitats, concordant with many previous studies (Watson 1977, Petty and Anderson 1986, Etheridge et al. 1997).
Our preferred nesting habitat classification and map defines consistently selected nesting habitat. Both nest nodes of the tree (nodes 2 and 3) indicate that harriers avoid nearby development (developed land and roads) and forested habitats, but differentiate between the harriers' criteria in wetland and upland habitats. In wetlands, harriers preferred being in or immediately adjacent to wetlands without any additional criteria, but in upland areas, harriers avoided development within 500 m.
Wetlands were particularly preferred, as 45 of the 128 nests were placed in them (including in shrubby as well as herbaceous marshes) despite their relative scarcity. When nesting in this habitat, harriers seemed more willing to tolerate development between 50 and 500 m, and a few nest sites showed particular evidence of this pattern. This implies that upland nesting habitat may be more negatively affected by nearby development than are wetland areas. In New Brunswick, harriers preferred nesting in wetter habitats and may have selected these areas because of lower predation rates (Simmons and Smith 1985).
The avoidance of development by harriers for nesting habitat may threaten their future on Nantucket. The island's human population and number of housing units have increased tremendously over the past 30 years, and with an estimated population growth rate of 13% (from 9520 to 10 724) between 2000 and 2003, Nantucket was Massachusetts's fastest growing county (U. S. Census Bureau, Population Division 2004). Christensen and Reinert (1990) also reported that harriers avoid human development and activity, especially in coastal habitats. Thus, minimizing the impacts of Nantucket's increasing human population may be critical to protecting the island's harriers. Similarly, the unsuitability of forested habitats as preferred nesting habitat may also threaten harriers on Nantucket. Forested habitats are increasing on the island and will expand further if they are not logged or otherwise undergo disturbance (Tiffany and Eveleigh 1985).
From a landscape metric perspective, the dominant explanatory features for predicting preferred nesting habitat occurred within 50 m of the nest. The notable exception was in uplands, where harriers located their nests >500 m from developed areas. Otherwise, we did not find any strong effects of landscape metrics at the 200 m, 500 m, or 1 km scales, suggesting that harrier nest site selection is based on habitat features within a relatively small area around the nest.
Interestingly, there were no splits in our classification tree model based on a preference for shrublands or herbaceous marsh. However, since our vegetation cover map could not distinguish small (2–3 m wide) patches of taller, shrubby vegetation within grasslands and heathlands where harriers typically nested, the selection of shrublands in the models may have been underestimated. For herbaceous marsh, the split based on distance to wetlands may have had a slightly stronger effect, masking any splits based on herbaceous marsh.
Raptors may select nest sites based on distance to foraging areas (Janes 1985) or total availability of suitable foraging habitat near the nests (Simmons and Smith 1985). However, we found no evidence that harriers on Nantucket prefer nesting habitats within some threshold distance of shrubland, low vegetation, or herbaceous marsh, or with a minimum percentage of a certain vegetation cover type around the nest. Harriers' ability to fly >100 km per day (Simmons 2000) may offset any relation between nest sites and foraging areas, especially on a relatively small island such as Nantucket.
Of the 2649 ha of preferred nesting habitat, 2266 ha (86%) are owned by nonprofit conservation organizations and local, state, and federal agencies (Nantucket Conservation Foundation 2004). Their acquiring the last portion of preferred nesting habitat would help secure the remaining unprotected areas that are important harrier nesting habitats.
The preference of harriers for nesting in herbaceous marsh and shrubland indicates that these habitats should be a priority for harrier habitat conservation, but management actions that increase the extent of scrub oak could have adverse effects on other species on the island that require grasslands and heathlands. The sandplain grassland and heathland communities of Nantucket are globally endangered and host a variety of rare plants, birds, and invertebrates (Dunwiddie et al. 1997). These communities are threatened by housing development and vegetation succession by woody species, such as pitch pine and scrub oak (Dunwiddie 1989), and conservation of these communities requires frequent disturbance regimes. It is important that these imperiled communities be maintained and not replaced by scrub oak despite its value for nesting harriers. If these habitats are managed for nesting harriers, disturbance regimes will have to be rotational and timed to minimize disturbance to the birds. Duebbert and Lokemon (1977) reported that harriers nested only in areas not mowed, burned, or grazed for 2–5 years. Serrentino (1992) recommended that no mowing, burning, or grazing occur near harrier nests during the courtship and nesting season, which is April to mid-August on Nantucket (Bowen 2001, 2003).
In the future, the conservation of harriers and other threatened taxa on Nantucket will depend on the availability of a combination of shrublands, grasslands, and heathlands. Conservation organizations on Nantucket can help by reducing or preventing the expansion of pine forests, efficiently managing heathlands and grasslands, and protecting preferred nesting habitats that are not currently included in the conservation network.
We would like to thank the Partnership for Harrier Habitat Preservation for funding this study, and the Nantucket Conservation Foundation, Massachusetts Audubon Society, and Nantucket Land Bank for providing study sites. We would also like to recognize Karen Combs-Beattie, Ernie Steinauer, and Scott Melvin for their guidance and hard work in making this project possible. Additionally, we appreciate the efforts of two wonderful field assistants, Leah Menyo and Jillian Drury. Finally, we are very grateful for the helpful suggestions on the manuscript by the reviewers and editors at The Condor.
