1. Introduction

The Canadian Arctic Archipelago and Greenland drifted apart as a result of the Eurekan Orogeny during the Late Cretaceous to Miocene (Figure 1(A)). The Eurekan deformation (von Gosen et al. 2012; Piepjohn et al. 2016) was a pan-arctic event that coincided with the emplacement of several mantle plumes originating beneath west Greenland (Harrison et al. 1999) and formed extensive deformation zones (Thorsteinsson and Tozer 1970; Balkwill 1978; Okulitch and Trettin 1991; Piepjohn et al. 2016; Gion et al. 2017). Counter-clockwise and northward movement of the Greenland plate and simultaneous seafloor spreading occurred in the Labrador Sea, Baffin Bay, and North Atlantic (Ricketts 1986; Riediger and Bustin 1987; Harrison et al. 1999). Tectonics associated with Eurekan deformation resulted in uplift that created the Cornwall and Princess Margaret arches and segmented the Carboniferous-Paleogene Sverdrup Basin into several sub-basins, including the Strand Fiord and the Remus sub-basins (Miall 1986), which accommodated thick deposits of terrestrial clastic sediments of the Eureka Sound Group (Riediger and Bustin 1987). Precise ages of Eurekan deformation events are poorly known, as is the temporal succession of activation of folding and faulting, as well as reactivation of previous deformation associated with the Ellesmerian Orogeny (Piepjohn et al. 2016). A more precise relative and absolute chronology is needed to determine the tectonic evolution of the eastern Canadian Arctic Archipelago during the Cenozoic (von Gosen et al. 2019).

During the late Paleocene to early Eocene, concurrent with Eurekan deformation, global temperatures had become substantially warmer than the already warm conditions of the Late Cretaceous. The Arctic was ice free and inhabited by a diverse flora and fauna associated today with subtropical environments, such as palms and mangroves, also including plants of mixed conifer-broadleaf rain forests, and animals like brontotheres, Coryphodon, crocodiles, primates, tapirs, and turtles (Zachos et al. 2008; Sluijs et al. 2009; Eberle and Greenwood 2012; Suan et al. 2017; West et al. 2019; Willard et al. 2019).

Figure 1.

(A) Map of Canada showing the Canadian Arctic Archipelago (beige) and Ellesmere Island (brown). (B) Closer view of Ellesmere Island showing the location of Stenkul Fiord. Modified from Atlas of Canada. (C) Outline of the southern shore of Stenkul Fiord. The black lines and numbers show measured and sampled sections. The grey shading shows topographic elevation >100 m above sea level, interpreted from satellite imagery. Source: Contains information licensed under the Open Government Licence – Canada.

The early Eocene was punctuated by several transient short-term episodes of global warming, referred to as hyperthermals, that were superimposed over a gradual long-term warming trend. These hyperthermals were caused by pulses of carbon, released into the global exogenic carbon pool (Lourens et al. 2005; Zachos et al. 2005; Lauretano et al. 2015; Jones et al. 2019). Two prominent hyperthermals were the Paleocene-Eocene Thermal Maximum (PETM) and the Eocene Thermal Maximum 2 (ETM2), radiometrically dated from ash layers and orbitally tuned marine sediments (McInerney and Wing 2011; Westerhold et al. 2009; Westerhold et al. 2017). The PETM occurred ∼55.93–55.749 Ma (Westerhold et al. 2017; Westerhold et al. 2018), during which Arctic Ocean temperatures increased 5–8 °C and air temperatures increased by 2–3.5 °C to a mean annual temperature of 13–21 °C (Kennett and Stott 1991; Koch et al. 1992; Zachos et al. 2001; Sluijs et al. 2006; Weijers et al. 2007; McInerney and Wing 2011; Eldrett et al. 2014; Willard et al. 2019). The ETM2 at ∼54.05–53.95 Ma and its associated climatic changes in the Arctic were similar to those of the PETM; temperatures increased and climate was humid (Sluijs et al. 2009; Suan et al. 2017; Westerhold et al. 2017; Willard et al. 2019). Arctic sea surface temperatures increased by 3–5 °C (Sluijs et al. 2009; Schoon et al. 2011).

The late Paleocene to middle Eocene (ca. 57–38Ma) sediments on Ellesmere and Axel Heiberg islands, part of the Canadian Arctic Archipelago, Nunavut, Canada (Figure 1(B)), preserve fossil evidence of past terrestrial environments, such as in situ fossil tree trunks, leaves, seeds, and pollen and spores (Eberle and Greenwood 2012; West et al. 2019). These fossils indicate that during non-hyperthermal conditions of the early Paleogene, the Arctic supported lush swamp and forest communities composed of conifers such as redwoods and cedars (Cupressaceae, e.g. Metasequoia, Chamaecyparis). Members of the Pinaceae (e.g. Larix, Picea, Pinus, Tsuga) were also common, and a diverse dicotyledonous angiosperm flora with alder and/or birch (Alnus and Betula spp.), linden (Tilia spp.) and other deciduous broadleaf trees were also important (Hills and Ogilvie 1970; Kalgutkar and McIntyre 1991; Frederiksen et al. 1994; Greenwood and Basinger 1994; McIver and Basinger 1999; Greenwood et al. 2010; Eberle and Greenwood 2012; Suan et al. 2017; Willard et al. 2019; West et al. 2019). During the PETM and ETM2 hyperthermal events, Arctic vegetation was characterized by broadleaf-forests and coniferous swamp forests that notably included thermophilic elements such as palms (Arecaceae) and mangroves (Avicennia sp.) (Weijers et al. 2007; Sluijs et al. 2009; Suan et al. 2017; Salpin et al. 2019; Willard et al. 2019; Suc et al. 2020). In the Beaufort-Mackenzie Basin region of the Canadian Arctic, the stratigraphic position of the base of the PETM hyperthermal was determined using carbon isotope stratigraphy in marine sediments (McNeil and Parsons 2013). The base of the PETM in the Beaufort-Mackenzie Basin is also characterized by the introduction of novel pollen taxa, the presence of thermophilic pollen such as Platycaryapollenites spp. and Tilia spp., and the occurrence of the dinoflagellate cyst Apectodinium augustum (McNeil and Parsons 2013). Another study of the Beaufort-Mackenzie Basin region determined the presence of Avicennia stratigraphically below the ETM2 (Salpin et al. 2019).

The palynoflora preserved in the sediments recovered from the Lomonosov Ridge shows notable responses of the floral assemblage to early Eocene hyperthermals—there are numerous first occurrences of pollen and spore taxa during the PETM and ETM2, including palms (Willard et al. 2019) and Avicennia (Suc et al. 2020). On Faddeevsky Island, New Siberian Islands, Russia, the PETM was identified using carbon isotope stratigraphy, and is associated with increases in abundance of taxodioid Cupressaceae (aff. Metasequoia or Taxodium), palm, and Avicennia pollen, as well as high kaolinite content (Suan et al. 2017). The geologically rapid onset of the PETM and ETM2, identified in marine sediments preserved on the Lomonosov Ridge (Pagani et al. 2006; Sluijs et al. 2009; Willard et al. 2019; Suc et al. 2020), and manifestations of their abrupt warming on regional vegetation composition provides an important datum for chronostratigraphic correlation and biostratigraphic age control (McNeil and Parsons 2013).

1.1. Stenkul Fiord

At Stenkul Fiord on southern Ellesmere Island (Figure 1(C); 77.35°N, 83.5°W), the exposed upper Paleocene to lower Eocene Margaret Formation (Figure 2) is composed of nearly continuous deposits of clastic sediment and coal (Figure 3; Riediger and Bustin 1987; Eberle and Greenwood 2012; Reinhardt et al. 2013; Reinhardt et al. 2017) that are rich in pollen and spores (Kalkreuth et al. 1996; Harrington et al. 2012). Strata are interpreted as proximal delta-front to delta-plain deposits and feature fining upward cycles of interbedded sandstones, mudstones, and lignitic coals (Miall 1984; Miall 1986; Ricketts 1986; Riediger and Bustin 1987; Kalkreuth et al. 1998). As part of the Eureka Sound Group, the Margaret Formation at Stenkul Fiord was deposited in the Remus Basin, a sub-basin of the larger Sverdrup Basin that formed in the early Paleogene during Eurekan deformation (Miall 1986). There is pronounced tectonic deformation of these strata associated with Eurekan deformation, seen as folding, reverse-, normal-, and strike-slip faulting (Figure 3(B); Piepjohn et al. 2016; Reinhardt et al. 2017; von Gosen et al. 2019).

Sediments at Stenkul Fiord may preserve the remains of Arctic forests that grew during the PETM and ETM2 and possibly smaller hyperthermals such as the I1 (Reinhardt et al. 2019), calibrated to 53.665Ma by Westerhold et al. (2017). The I1 hyperthermal has not previously been reported in terrestrial Arctic sediments. The pronounced climatic changes associated with the PETM and the ETM2 hyperthermals are expected to have affected the vegetation at Stenkul Fiord and other high northern latitude locations where taxa may have been living at or near ecological tolerances due to the duration of the polar night. Floral responses to climatic changes are archived in pollen and spore assemblages preserved in strata during deposition. Detailed sampling of terrestrial sediments has previously been performed at Stenkul Fiord at a resolution high enough to allow an observation of floral changes in response to environmental changes of the hyperthermals (cf. Kalkreuth et al. 1996; Harrington et al. 2012). However, the previous palynological analyses could at the time not be integrated with absolute time. Recently, a well-constrained radiometrically dated ash layer was identified at Stenkul Fiord (von Gosen et al. 2019), providing much-needed absolute age control.

The objectives of this study are to evaluate compositional changes of floral assemblages in response to early Eocene hyperthermal intervals to produce a precise quantitative pollen zonation scheme for Stenkul Fiord that can be applied at a local, regional, and pan-hemispheric scale. The radiometrically dated volcanic ash (MA-1; von Gosen et al. 2019) provides an absolute age that strengthens the stratigraphic framework of this study. A fine-resolution pollen zonation scheme, as presented here, will refine correlation of stratigraphic sequences of existing litho- and biostratigraphy and will provide a palynostratigraphic framework to impart insight into the chronology of the Eurekan deformation events and to evaluate floral responses to early Eocene hyperthermals.

Figure 2.

Early Paleogene lithostratigraphic chart showing the chronostratigraphic positions (coloured horizontal bars) of early Eocene hyperthermals at Stenkul Fiord and Split Lake. The Graybullian, which is mentioned in this study, is a substage of the Wasatchian stage and falls within the early Eocene. The sampled sections column shows preliminary stratigraphic placement of four sampled sections and the volcanic ash layer MA-1. Modified from West et al. (2019).

1.2. Stratigraphy of Stenkul Fiord

Studies of the depositional environment at Stenkul Fiord by Riediger and Bustin (1987) established a detailed lithostratigraphy for the region. Biostratigraphic age control was provided primarily by determination of Eocene-aged invertebrates (Riediger and Bustin 1987). Rare dinoflagellate cysts did not provide age control (McIntyre 1994). McIntyre (1994) established a late Paleocene to early Eocene age for the Stenkul Fiord strata using biostratigraphic ages of pollen and spores, which Kalkreuth et al. (1996) subsequently used in their study. Harrington et al. (2012) conducted an additional palynological study of Stenkul Fiord but assigned an early Eocene age based on the composition of the vertebrate fauna found in local sandstone units using the North American Land Mammal Age (NALMA) scheme of Woodburne (2004). The vertebrate fauna indicates an early Eocene age of 53.0 to 54.5 Ma (Wasatchian – Graybullian NALMA) (Eberle and Greenwood 2012; Harrington et al. 2012; Eberle and Eberth 2015; West et al. 2015). At the time studies such as those by Kalkreuth et al. (1996) and Harrington et al. (2012) were conducted, radiometric ages for these sediments were unavailable and thus could not be integrated with absolute ages, therefore providing only relative ages.

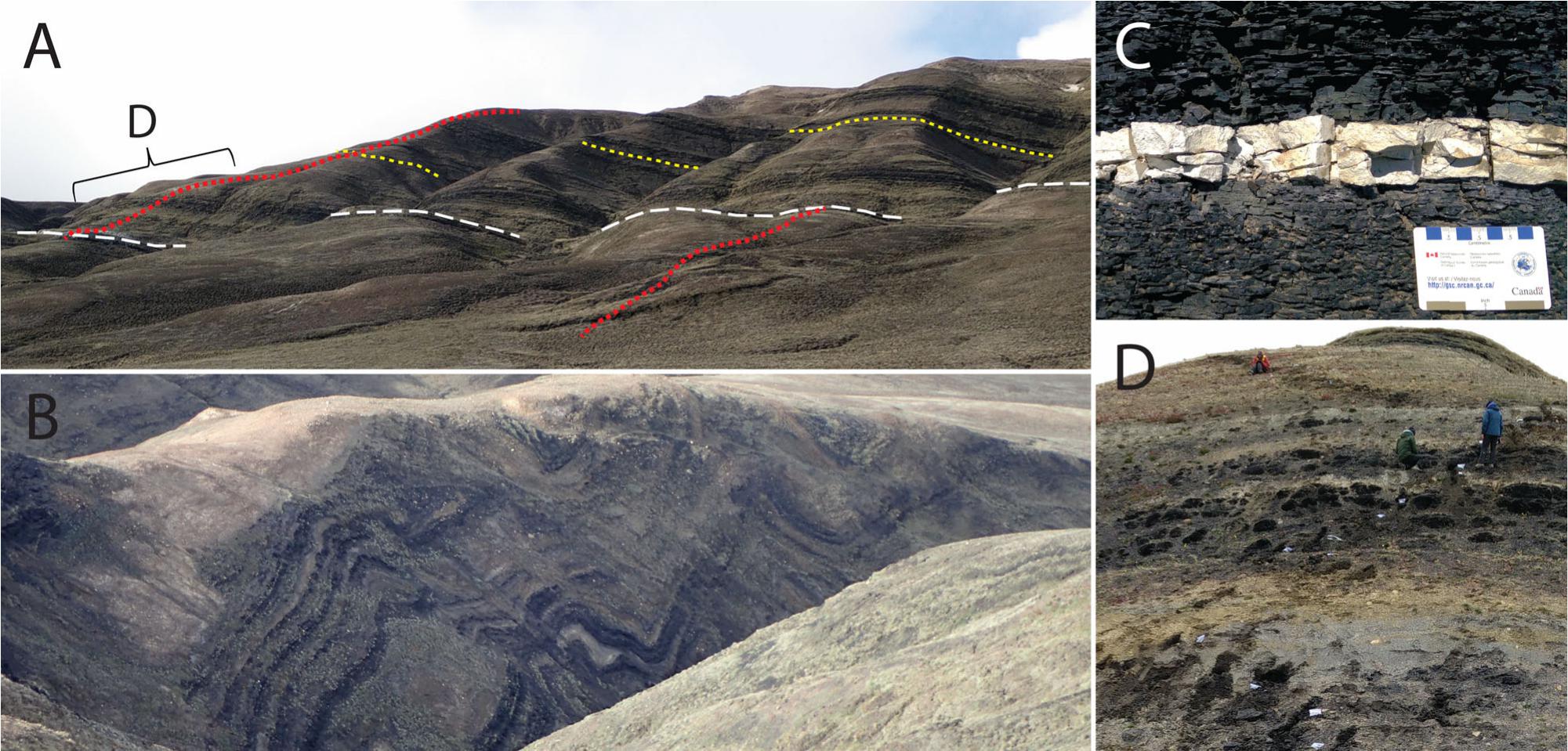

Figure 3.

(A) Exposed strata of the Margaret Formation at Stenkul Fiord. The red dotted line shows the sampled path, which is offset along the white sand marker bed (white dashed line). The yellow dashed line shows the approximate stratigraphic placement of the dated volcanic ash layer MA-1. (B) Folded strata near S3 at Stenkul Fiord. (C) Volcanic ash layer MA-3 at the base of S2. (D) Exposed strata at S1 and sampled path indicated by small white sample bags and exposed fresh sediment. Persons for scale. Location of shown sediments in (D) are indicated in (A) by the bracketed D.

Pollen zonation of the Canadian Arctic by Harrison et al. (1999) was based on data from the Beaufort-Mackenzie Basin and Axel Heiberg Island by Sweet et al. (1989) and D.J. Mclntyre (in Dixon 1996). For the latest Paleocene (∼57 Ma) into the middle Eocene (∼41 Ma). Three pollen zones were recognized: the Pistillipollenites mcgregorii zone, Aquilapollenites tumanganicus zone, and the Juglans sp.–Tilia sp.–Ilex sp. zone, defined by first appearances of these taxa (Harrison et al. 1999). Two of these genera, Juglans and Tilia, occur frequently at Stenkul Fiord and provide a late Paleocene to early Eocene age of local sediments (McIntyre 1994; Kalkreuth et al. 1996; Harrington et al. 2012). This pollen zonation scheme can herein be refined using higher density sampling and integration of results from U-Pb radiometric ages of an ash layer (von Gosen et al. 2019).

The exposed Margaret Formation at Stenkul Fiord (Figure 2) consists of four sedimentary units separated by unconformities and/or disconformities (von Gosen et al. 2019). The lowermost Unit 1 is latest Paleocene-early Eocene age, units 2 and 3 are early Eocene age, and the uppermost Unit 4 may be of middle Eocene age (von Gosen et al. 2019). Relative ages of the sedimentary units were determined primarily using multiple U-Pb radiometric ages (ID-TIMS) recovered from zircons preserved within a laterally extensive ash layer (Figure 3(C); Reinhardt et al. 2013; Reinhardt et al. 2017; von Gosen et al. 2019). The ash layer, named MA-1, occurs stratigraphically near the unconformity between units 2 and 3, and provided an age of 53.7 ± 0.06 Ma (von Gosen et al. 2019).

2. Materials and methods

This study is based on material collected at Stenkul Fiord, Ellesmere Island, Nunavut, Canada, in July 2017 (Figure 3(D)) as part of a joint German-Canadian expedition (Circum-Arctic Structural Events 19 – CASE 19) co-led by the German Federal Institute for Geosciences and Natural Resources (BGR) and the Geological Survey of Canada (GSC). A total of four sections (S1, S2, S3, S5; Figures 1 and 2) were chosen to capture the longest possible continuous stratigraphic succession. Sections were also chosen where volcanic ash layers were preserved and based on uncertainties of stratigraphic placement of sections found along the main W-E valley to refine interpretation of the stratigraphy and its deformation (see von Gosen et al. 2019). The exposure at S1 faces NE, on a slope towards the fiord (Figures 1 and 3(A)). S1 sediments, however, have been affected by syn-sedimentary deformation (von Gosen et al. 2019). S2 was measured and sampled on the limb of an anticline fold on the north side of the main W-E valley, opposite to S3 within the hinge of an anticline fold on the south side of the main W-E valley (von Gosen et al. 2019). S5 faces W towards the fiord, opposite to S1, and is outside the studied area of von Gosen et al. (2019). The east side near S5 is likely offset to the western area around S1, S2, and S3 by a larger fault or set of faults (Riediger and Bustin 1987). However, sedimentation between eastern and western strata may also have been continuous and the bedding planes were subsequently tilted instead of faulted (West et al. 2015). At S5, field observations suggest the strata are undeformed but likely were also affected by syn-sedimentary deformation.

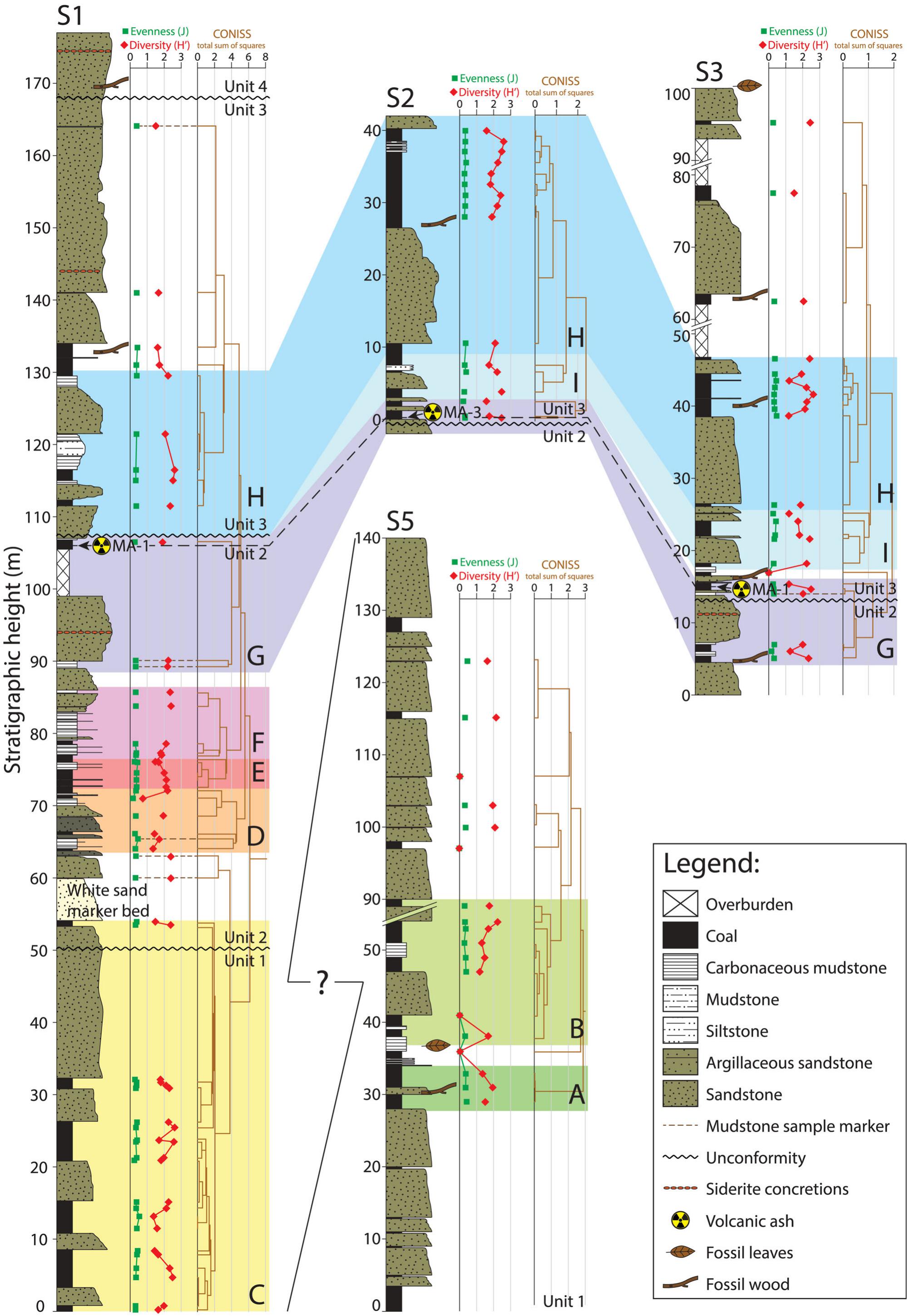

Figure 4.

Lithostratigraphy of correlated measured sections (S5, S1, S2, and S3) at Stenkul Fiord with superimposed pollen zones (zones A–I). Units 1–4 of von Gosen et al. (2019) are shown, separated by unconformities, as well as the dated volcanic ash layers (MA-1 and MA-3). The green graph shows Pielou's species evenness (J), the red graph shows the Shannon-Wiener diversity index (H′) calculated from the angiosperm pollen sum only, because changes in the relative abundance of angiosperms are sensitive to environmental change (Nichols and Ott 1978). The orange graph shows the clustering of CONISS cluster analysis. These data points indicate stratigraphic locations of all sampled strata. The brown dashed lines connecting data points of J, H′, and CONISS clusters indicate the 7 mudstone samples. The stratigraphic placement of S5 below S1 is currently uncertain and is shown by a question mark.

Ninety-six samples were collected from outcropping exposures of the Margaret Formation for palynological analyses. Approximately 100 g of organic-rich material (mostly coal) were collected from sediments, where present. Collections were made at every successive thin (<0.5 m) organic-rich layer, the bottom and top of thicker layers (0.5 m up to 1 m), and every 1–1.5 m for layers thicker than 1 m. Material from rare mudstone was also collected, representing 7 out of the 96 samples collected (marked in Figure 4 and S upplementary Data Figures A1–A4).

The organic-rich material collected at Stenkul Fiord was prepared by Global Geolab Limited, Alberta, Canada, to isolate palynomorphs following standard techniques (Faegri and Iversen 1964; Ediger 1986; Traverse 2007), including washing, acid digestion with hydrochloric and hydrofluoric acids, oxidation with Schulze's solution, staining with Safranin O, and then residues were mounted using liquid bioplastic. Samples were sieved at 150 µm to remove large particles. All microscope slides are currently on loan from the Government of Nunavut and are stored at the Geological Survey of Canada, Calgary, Alberta. Curation, preparation, and specimen numbers are shown in  Supplementary Data Table A1.

Identification and enumeration of palynomorphs were conducted using an Olympus BX-51 microscope equipped with an Olympus SC100 camera at 40x magnification and at 100x magnification under oil immersion. A list of identified pollen and spore taxa and their taxonomic authorities are shown in  Supplementary Data Table A2. Quantitative analyses are based on minimum counts of 300 or more pollen and spore grains from obligately terrestrial plants ( Supplementary Data Figures A5–A8). The slides were subsequently scanned for taxa not encountered during initial counts that may be biostratigraphically important (e.g. Harrington et al. 2005). Preparations with poorly preserved palynomorphs were also scanned where counting was not possible. Thermal Alteration Index of palynomorphs was assessed on kerogen (unoxidized) slides and is 2-, indicating minor thermal alteration (Pearson 1984).

Lithostratigraphic column reconstructions (Figure 4 and  Supplementary Data Figures A1–A4) were prepared using AdobeVR Illustrator and the FGDC Digital Cartographic Standard for Geologic Map Symbolization plug-in (U.S. Geological Survey 2006). Lithostratigraphic correlation of sections (Figure 4) containing the dated volcanic ash layer was done primarily in the field, based on prior understanding of the lithology of Stenkul Fiord with the assistance of a map derived from a high-resolution satellite image, aerial photographs, and the known age of the volcanic ash layer MA-1 (Reinhardt et al. 2017; von Gosen et al. 2019).

MicrosoftVR Excel was used to plot raw abundances of palynomorphs as range diagrams, showing first occurrences (FOs) and last occurrences (LOs) of taxa for each section ( Supplementary Data Figures A5–A8). A range chart showing key pollen taxa for all four sections (Figure 5) was produced with AdobeVR Illustrator. The stratigraphic distribution of the relative abundance of pollen and spore taxa is shown for each of the measured sections and plotted using TiliaView (Grimm 1993) and is shown in  Supplementary Data Figures A9–A12. Sample grouping was performed using stratigraphically constrained cluster analysis (CONISS) on square root transformed relative abundance data (Grimm 1987) and is shown with the lithostratigraphy in Figure 4, as well as in the appendix ( Supplementary Data Figures A9–A12). All taxa with a relative abundance of 3% or greater per sample were included in the CONISS analysis included as recommended by Grimm (1987), but with aquatic taxa (Sparganiaceaepollenites reticulus and Graminidites sp.) and the bisaccates Piceaepollenites sp. and Pinuspollenites sp. removed. This treatment reflects that pollen derived from Pinus or Picea ancestors, such as Piceapollenites and Pinuspollenites, likely originated from long distance transport (Mudie and McCarthy 1994) and that these taxa can be notoriously overrepresented in modern pollen spectra. Pollen from obligately aquatic plants are excluded as they represent a local signal (Traverse 2007). Shannon Diversity Index (H′) and Pielou's species evenness (J) were computed in R (R Development Core Team 2018) and the RStudio (RStudio Team 2016) software extension, using the vegan package (Oksanen et al. 2007). Only the angiosperm-sum H′ and J values are displayed in Figure 4 as changes in the relative abundance of angiosperms are of particular interest as they are sensitive to environmental change (Nichols and Ott 1978). Diversity (H′) and evenness (J) values for angiosperm pollen taxa are shown in  Supplementary Data Table A3.

Non-metric multidimensional scaling (NMDS), regarded as one of the most robust unconstrained ordination methods in community ecology (Minchin 1987), was performed using the vegan package (Oksanen et al. 2007) in R (R Development Core Team 2018). As a non-parametric ordination technique, NMDS employs ranked distances to assess the similarity between samples. Samples that plot close to each other are similar in composition. The relative abundance of pollen and spores from samples across all four sections were included. This analysis was performed in two dimensions and employed the Bray-Curtis distance metric. Runs were repeated until a convergent solution was reached. Within-sample normal confidence ellipses with a t-distribution at 95% (Fox and Weisberg 2011) were added for each of the pollen zones to simplify the illustration of NMDS results (Figure 6).

Figure 5.

Range diagram of key gymnosperm and angiosperm pollen taxa for each section shown in different colours. Palynomorph taxa have been sorted by their first occurrences. Pollen zones are superimposed for relative time control. The stratigraphic location of the volcanic ash MA-1 is shown by the trefoil, providing a temporal reference point of ∼53.7 Ma (von Gosen et al. 2019).

3. Results

3.7. Pollen zone E

Zone E is also found in the lower Unit 2 of von Gosen et al. (2019) and Member 4 of Riediger and Bustin (1987) (Figure 4 and  Supplementary Data Figures A2, A6, and A10). This zone is characterized by a better-defined cluster and angiosperm diversity (H′) is higher (∼1.9) than in the previous zone. NMDS ordinance of this pollen zone provides a well-constrained cluster, indicating lower compositional variation between samples (Figure 6). Average relative abundances of C. hiatipites pollen are higher than in the bounding strata (∼79%). Castaneapollenites sp. and Tricolporites sp. 2 pollen are more abundant in this zone.

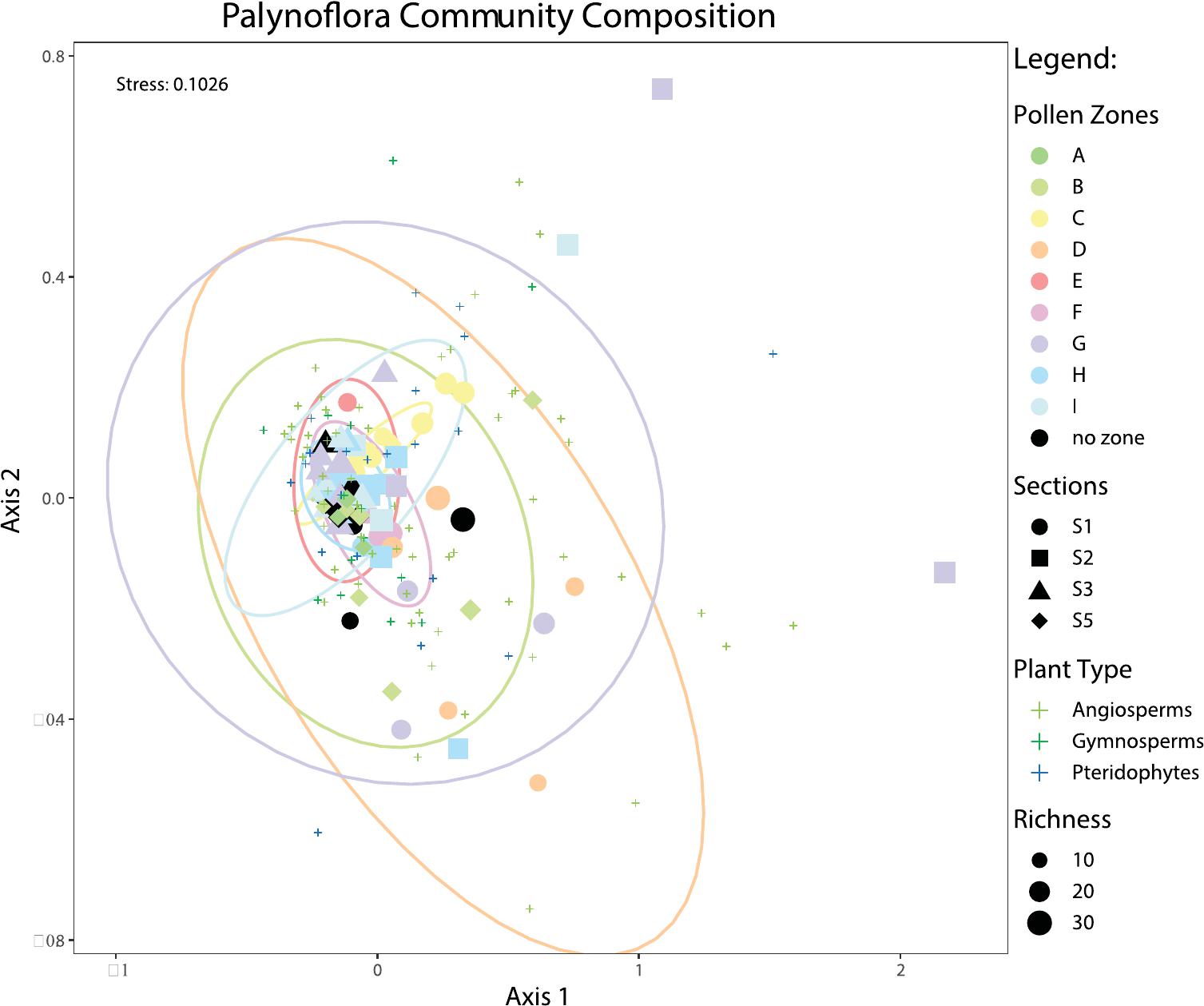

Figure 6.

NMDS analysis of samples from all sections at Stenkul Fiord, separated by colour according to the pollen zones. Confidence ellipses have been superimposed to show how well the clusters for each pollen zone have been constrained and the degree of compositional variance within a pollen zone.

3.9. Pollen zone G

Zone G occurs immediately below the unconformity between Unit 2 and Unit 3 in S1 and above the unconformity near the bases of S2 and S3 (von Gosen et al. 2019). In the scheme of Riediger and Bustin (1987), this zone still belongs to Member 4 (Figure 4 and  Supplementary Data Figures A2–A4, A6–A8, and A10–A12). Deposited within this zone are the volcanic ash layers, which were described by von Gosen et al. (2019). One of these ash layers (MA-1 at S1 and S3) was dated to 53.7 ± 0.06 Ma (ID-TIMS U-Pb of zircon). The ash layers act as correlation points for zone G in S1, S2, and S3 as the layers are readily visible in outcrop. Cluster analysis results in a less well-defined cluster for S1 but much better-defined clusters in S2 and S3 (Figure 4). Angiosperm diversity (H′) is higher than in strata below (∼2.1) but remains lower in S2 and S3 (∼1.9 for both). NMDS ordinance of this pollen zone provides a poorly constrained cluster, indicating higher compositional variation between samples (Figure 6). Two of the three samples of this pollen zone originate from mudstones, but this lithofacies variation is unlikely to affect the floral spectra. Pollen of Aquilapollenites tumanganicus, Ericipites sp., Tricolpites sagax, Ulmipollenites tricostatus are the most abundant angiosperm taxa in S1. In S2 and S3, Pistillipollenites mcgregorii and Sparganiaceaepollenites reticulus are the most abundant pollen taxa, as well as Ulmipollenites tricostatus in S2. First occurrences include the pollen taxa Alnipollenites trina, Intratriporopollenites cf. I. instructus, and Ulmoideipites hebridicus (Figure 5). Many angiosperm pollen taxa from zone A reappear, including Aesculiidites sp., Caprifoliites cf. C. paleocenicus, and Retitricolpites crassus. There is a decrease in the average relative abundance in this pollen zone of C. hiatipites pollen in S1 (∼51%) and S2 (∼34%) but not in S3 (∼77%).

Plate 1.

Important Margaret Formation angiosperm pollen taxa. Given are the sample number, GSC curation number (C-number), GSC Calgary Palynology Laboratory preparation number (P-number), GSC Specimen numbers (pending), and England Finder coordinates. Scale bars = 10 µm. 1. Alnipollenites verus (Potonié) Potonié 1934, 17GTA141, C-626943 P5371-136, L30/1. 2. Alnipollenites trina (Stanley) Norton in Norton and Hall 1969, 17GTA049, C-625845 P5371-29, N44/4. 3. Castaneapollenites sp. Raatz 1938, 17GTA038, C-625834 P5371-18, V45/2. 4. Aquilapollenites tumanganicus Bolotnikova 1973, 17GTA013, C-625826 P5371-10, E35. 5. Diervilla sp. Kalkreuth et al. 1993, 17GTA045, C-625841 P5371-25, C34/4. 6. Erdtmanipollis procumbentiformis (Samoilovitch) Krutzsch 1966, 17GTA135, C-626937 P5371-130, G35/3. 7. cf. Aesculiidites sp. Elsik 1968, 17GTA004, C-625817 P5371-1, L45. 8. Caprifoliites cf. C. paleocenicus (Wodehouse) Pocknall and Nichols 1996, 17GTA038, C-625834 P5371-18, P41/3. 9. Siltaria hanleyi (Traverse) Pocknall and Nichols 1996, 17GTA005, C-625818 P5371-2, U31/1. 10. cf. Bombacacidites sp. Couper 1960, 17GTA037, C-625833 P5371-17, X45. 11. Liquidambarpollenites cf. L. mangelsdorfianus (Traverse) Potonié 1960, 17GTA074, C-626894 P5371-71, Q40/4. 12. Caryapollenites imparalis Nichols and Ott 1978, 17GTA053, C-625849 P5371-33, V37/2. 13. Platycaryapollenites swasticoidus Elsik 1974, 17GTA056, C-625852 P5371-36, S39. 14. Tilia crassipites Wodehouse 1933, 17GTA056, C-625852 P5371-36, U-39/2. 15. Tilia vescipites Wodehouse 1933, 17GTA073, C-626893 P5371-70, Q42. 16. Ericipites sp. Wodehouse 1933, 17GTA066, C-626885 P5371-62, V26/2. 17. Liliacidites complexus (Stanley) Leffingwell 1971, 17GTA045, C-625841 P5371-25, L45. 18. Ulmipollenites krempii (Anderson) Frederiksen 1979, 17GTA062, C-626881 P5371-58, J42/4. 19. Ulmipollenites tricostatus (Anderson) Farabee and Canright 1986, 17GTA073, C-626893 P5371-70, Q45/4. 20. Ulmoideipites hebridicus (Simpson) Sweet 1986, 17GTA073, C-626893 P5371-70, K39/1. 21. Tricolpites ringens Ward 1986, 17GTA056, C-625852 P5371-36, S35/4. 22. Pistillipollenites mcgregorii Rouse 1962, 17GTA057, C-626876 P5371-53, H36/1. 23. Sparganiaceaepollenites reticulus (Doktorowicz-Hrebnicka 1960) Krutzsch and Vanhoorne 1977, 17GTA005, C-625818 P5371-2, T40. 24. Paraalnipollenites alterniporus (Simpson) Srivastava 1975, 17GTA133, C-626935 P5371-128, R29/3. 25. Triporopollenites mullensis (Simpson) Rouse and Srivastava 1972, 17GTA033, C-625829 P5371-13, V35. 26. Tricolpites anguloluminosus Anderson 1960, 17GTA004, C-625817 P5371-1, O42/1. 27. Tricolpites reticulatus Cookson 1947, 17GTA073, C-626893 P5371-70, W46/3. 28. Tricolpites sagax Norris 1967, 17GTA013, C-625826 P5371-10, L30/2. 29. Retitricolpites crassus Samoilovitch 1965, 17GTA005, C-625818 P5371-2, Q33/2. 30. Echitricolpites supraechinatus Pocknall and Nichols 1996, 17GTA063, C-626882 P5371-59, M35/1.

4. Discussion

The new pollen zonation presented here provides a robust biostratigraphy whereby parts of the lithology of Stenkul Fiord may be calibrated to the absolute time scale from the dated volcanic ash layer MA-1 (Figure 4; von Gosen et al. 2019). The palynoflora at Stenkul Fiord shows compositional changes through time with unique floral signatures that are constrained to a few metres of stratigraphy. CONISS cluster analysis recognized a total of nine pollen zones that are used to create the biostratigraphic framework and to correlate three separate sections to each other (Figure 4).

The volcanic ash layer MA-1, dated at ∼53.7 ± 0.06 Ma (von Gosen et al. 2019), found in S1 and S3 allows those sections to be confidently correlated to one another (Figure 4). Volcanic ash layer MA-3, found in S2, is reported to be of a similar age as MA-1, near 53.7 Ma, but was likely deposited soon after MA-1 (von Gosen et al. 2019). For this part of the section in S2 and S3, CONISS cluster analysis produced a pollen zone (G; Figure 4) that is similar in floral composition between the two sections and plots as a well-constrained cluster in NMDS analysis (Figure 6). This indicates a higher degree of relatedness between the sampled layers of all sections within pollen zone G, and effectively volcanic ash layers MA-1 and MA-3, allowing S2 to tentatively be correlated with S1 and S3 until the age of the ash layer is confirmed. S5, however, does not contain a volcanic ash layer, its floral composition does not correlate to the other sections, and some key thermophilic pollen taxa are not observed (Figure 5). This supports previous assumptions that the east side of Stenkul Fiord is of late Paleocene age (Riediger and Bustin 1987; West et al. 2015; von Gosen et al. 2019).

Palynofloral compositions vary laterally at Stenkul Fiord and not all taxa found in one section were observed in other sections (Figure 5). However, some indicator taxa remain present across sections, and compositions are sufficiently consistent so that pollen zones can be traced laterally (Figures 4 and 5). Pollen zones G and H can be traced for more than a kilometre in three separate sections (S1, S2, and S3). In the middle Eocene Buchanan Lake flora on Axel Heiberg Island, two macrofloras at the same stratigraphic level but separated laterally by more than a kilometre, showed almost identical compositions (McIver and Basinger 1999). The palynofacies of the Margaret Formation at Stenkul Fiord can therefore likely be applied to other Arctic localities as well.

Plate 2.

Important Margaret Formation gymnosperm pollen and pteridophyte spore taxa. Given are the sample number, GSC curation number (C-number), GSC Calgary Palynology Laboratory preparation number (P-number), and England Finder coordinates. Scale bars = 10 µm. 1. Laevigatosporites cf. L. pseudodiscordatus (Krutzsch) Krutzsch and Vanhoorne 1977, 17GTA057, C-626876 P5371-53, J45/1. 2. Ovoidites elongatus (Hunger) Krutzsch 1959, 17GTA009, C-625822 P5371-6, L34/1. 3. Stereisporites antiquasporites (Wilson and Webster) Dettmann 1963, 17GTA033, C-625829 P5371-13, R37. 4. Stereigranisporis regius (Drozhastichich) Ravn and Witzke 1995, 17GTA062, C-626881 P5371-58, L33/1. 5. Baculatisporites primarius (Wolff 1933) Thomson and Pflug 1953, 17GTA070, C-626889 P5371-66, G43/1. 6. Laevigatosporites haardti (Potonié & Venitz) Thomson and Pflug 1953, 17GTA011, C-625824 P5371-8, J45-1. 7. Cycadopites scabratus Wodehouse 1933, 17GTA135, C-626937 P5371-130, D35/1. 8. Cycadopites sp. Wodehouse 1933, 17GTA006, C-625819 P5371-3, D38/1. 9. Pinuspollenites sp. Erdtman 1943, 17GTA056, C-625852 P5371-36, W35/1. 10. Cathayapollenites sp. Sivak 1976, 17GTA068, C-626887 P5371-64, O41/4. 11. Sequoiapollenites paleocenicus Stanley 1965, 17GTA044, C-625840 P5371-24, M33/1. 12. Cupressacites hiatipites (Wodehouse 1933) Krutzsch 1971, 17GTA027, C-626438 P5371-49, V45. 13. Cupressacites hiatipites (Wodehouse 1933) Krutzsch 1971, 17GTA056, C-6258, 52 P5371-36, N45/3.

This study sampled mostly coals, with a few exceptions (n = 7 out of 96 samples), thus limiting potential influence of lithofacies variation on the palynoflora. In the preparations from the 7 mudstone samples, the absence of dinoflagellate cysts and marine algae combined with the presence of leaf mats in several of the mudstone units at Stenkul Fiord (West et al. 2019, 2020) indicate that the mudstone samples were not deposited in offshore environments; instead these rocks are interpreted as being deposited in quiescent fluvio-lacustrine and overbank deposits within a delta-plain (West et al. 2019, 2020). Some sorting from riverine input in the delta-plain environment could have occurred, but would affect mostly delta-front deposits, rather than the quiescent settings where sediments accumulate in overbank and other similar fluvio-lacustrine environments. In the instance of riverine sorting, relatively heavy spores can be preferentially deposited near the river mouth, while other forms (e.g. bisaccates) are transported further offshore due to their buoyancy in water, as well as aerial transport. However, marine sediments remain useful for reconstruction of terrestrial vegetation, and are broadly representative of onshore source areas (McCarthy and Mudie 1998 and references therein). In the Stenkul Fiord material, bisaccate pollen is minimal (∼2%) and instead Cupressaceae-Taxaceae pollen represents the majority of the spectra in the Stenkul Fiord material (∼72%). Cupressaceae-Taxaceae pollen is generally proportionally representative of terrestrial density of parent plants, even in marine settings (Mudie and McCarthy 2006).

A few thermophilic pollen taxa are present in the Margaret Formation pollen assemblage and indicate the possible presence of the PETM at the base of Unit 1 within pollen zone C at Stenkul Fiord. As in the earliest Eocene sediments of the Beaufort-Mackenzie Basin (McNeil and Parsons 2013), Platycaryapollenites and Tilia first occur in this assemblage near the top of S5 and in pollen zone C (Figure 5), respectively. On the Lomonosov Ridge Platycaryapollenites were also first seen during the PETM (Willard et al. 2019). Additionally, at Stenkul Fiord, two taxa of Cycadopites sp. occur in the uppermost S5 and another taxon of Cycadopites appears in the lowermost S1 (Figure 5). Beginning in pollen zone C, angiosperm pollen taxa diversity is slightly higher relative to the previous pollen zones A and B (Figure 4). Previous studies have documented increases in angiosperm diversity during early Eocene hyperthermals, for example, in the mid-latitude Bighorn Basin (Wing et al. 2005; Wing and Currano 2013). Similar diversity increases also occurred at high northern latitudes (Suan et al. 2017; Salpin et al. 2019; Willard et al. 2019). The flora at Stenkul Fiord may have responded to the warming of the early Eocene hyperthermals in a similar manner. NMDS ordination shows a well-constrained cluster of samples for zone C, indicating a uniform thermophilic floral composition during this time (Figure 6). It is therefore possible that this part of the Margaret Formation within pollen zone C at Stenkul Fiord may capture the PETM hyperthermal, or parts of it.

Similar to pollen zone C, zones E and F exhibit slightly higher diversity (Figure 4) and a more uniform floral composition compared to zone D (Figure 6). The thermophilic taxa in pollen zones E and F, which were first seen in zone C, continue to be present here (Figure 5). Their stratigraphic and temporal proximity to the younger volcanic ash layer MA-1 (Figure 4) suggest that the ETM2 hyperthermal may also be captured at Stenkul Fiord in sediments within or near pollen zones E and F. As indicated by the age of the volcanic ash layer MA-1 of ∼53.7 Ma, the top of pollen zone G, preserved in the uppermost Unit 2 of S1 and at the base of Unit 3 in S2 and S3, may include the smaller I1 hyperthermal that occurred near 53.665 Ma (Westerhold et al. 2017). Palynofloral diversity in pollen zone G is similar to zones E and F and a few FOs are seen here (Figures 4 and 5). NMDS ordination, however, provides a loose cluster of samples for zone G, indicating that even though the hyperthermal event I1 occurred during the deposition of pollen zone G, it may not be captured at Stenkul Fiord or only constitute a small part of zone G near MA-1 (Figure 6).

Relative abundances of Cupressacites hiatipites pollen slightly increase in and just below pollen zone C and within pollen zone E near the possible PETM and early ETM2 hyperthermals, relative to the already high abundances in the bounding pollen zones ( Supplementary Data Figures A9 and A10). High relative abundances of C. hiatipites throughout Margaret Formation strata were also previously reported at Stenkul Fiord by McIntyre (1994). The increase in relative abundance of this pollen type is an important factor in this study that helps to define pollen zones between sections. On the Lomonosov Ridge, relative abundances of this taxon were observed to increase during the body and recovery of the PETM (Willard et al. 2019). On the New Siberian Islands, Cupressaceae pollen are reported to have dominated during the onset and body of the PETM (Suan et al. 2017). On the Lomonosov Ridge, Cupressaceae pollen dominated again during the ETM2 (Willard et al. 2019). This indicates a strong presence of coal-forming swamps at Stenkul Fiord that were dominated by taxodiaceous Cupressaceae (cf. Eberle and Greenwood 2012; Suan et al 2017; Willard et al. 2019).

5. Conclusions

The sequence of structural Eurekan deformation manifested at Stenkul Fiord and starting in the middle of Unit 2 until the end of Unit 3 of von Gosen et al. (2019), may soon be interpreted in future studies that can employ the palynostratigraphy presented herein and a dated volcanic ash horizon. This is the first study in the Canadian Arctic that employs insights of thermophilic hyperthermal-indicative pollen flora assemblages to establish a biostratigraphic framework of the late Paleocene-early Eocene interval. The biostratigraphic framework defines nine informal pollen assemblage zones which are confidently correlated between sections mainly through the volcanic ash layers MA-1 and MA-3, CONISS cluster analysis (Figure 4), NMDS analysis (Figure 6), stratigraphic occurrences of angiosperm pollen taxa (Figure 5), and finally angiosperm diversity, and evenness (Figure 4). Lateral continuity of pollen zones at Stenkul Fiord indicates that this palynostratigraphic framework, in association with other studies of early Eocene Arctic floras, may be applied throughout contemporaneous sites within the Arctic. Arctic environments show similar floral compositions at the same stratigraphic levels (e.g. McIver and Basinger 1999) and similar indicator taxa, such as Tilia and Platycaryapollenites, even across large distances. This study is in agreement with previous studies of the Arctic that show vegetational responses to early Eocene hyperthermals (e.g. Sluijs et al. 2009; McNeil and Parsons 2013; Suan et al. 2017; Salpin et al. 2019; Willard et al. 2019; Suc et al. 2020).

Future studies may rely on this framework, integrated with the new structural geological perspectives by von Gosen et al. (2019) and a carbon isotope chemostratigraphy, to interpret the interplay between sedimentation and Eurekan deformation and to determine the tectonic evolution in this part of the Canadian Arctic Archipelago. The results of this study suggest that strata at Stenkul Fiord contain evidence of early Eocene hyperthermals, such as the PETM, ETM2, and possibly even the smaller I1. Based on the geochronology (U-Pb TIMS) of the ash bed preserved in the Stenkul Fiord succession, it is certain that the succession was deposited contemporaneous with a time of known hyperthermal events, broadly speaking. But since the effects of hyperthermals on the vegetation record in high latitude North America are not yet clear, this study may in the future be part of the first attempt to evaluate a terrestrial signature from an Arctic terrestrial archive. This high-latitude record is ideally positioned to do so: in high northern latitudes where many taxa are likely living near their ecological optima and tolerance limits, climatic changes are expected to elicit an ecological response. However, this palynological record does not document profound vegetation change. Future studies with greater sampling resolution in different locations at Stenkul Fiord coupled with the results of additional climatic and ecological analyses may be able to address this question. Our stratigraphy offers the first high northern latitude terrestrial record. As such, should the PETM and ETM2 hyperthermals in fact be captured at Stenkul Fiord, the biostratrigraphic framework of this study will provide an excellent point of orientation for future efforts.
