Determination of physical change

Physical change on the Linda Glacier climbing route was quantitatively assessed for 2 features: the Tasman Glacier and the Linda Glacier (Figure 1C). On the Tasman Glacier, we assessed changes in surface elevation near the Ball Glacier confluence. When an ascent of Aoraki via the Linda Glacier route is made purely on foot, it is first necessary to access the Tasman Glacier and travel up it for some distance before ascending slopes leading toward the Grand Plateau. Intermittent surveys of surface elevation have been made on Tasman Glacier since the late 1800s. Methods have varied over time as technologies evolved. These data (summarized in Table 1) were projected to the same cross-glacier transect (Figure 1C), assuming an upglacier surface slope of 2° following the method of Watson (1995). Where multiple elevations were surveyed at the same time, only those between New Zealand Transverse Mercator eastings 1,373,840 and 1,375,180 were averaged, providing a single comparable glacier elevation value. This limit was invoked to prevent a low-elevation bias caused by observations taken at the glacier edges.

These surveys provide objective measurements of how the surface of the Tasman Glacier has lowered over time. Where possible, the surveys were corrected to the same datum assuming the elevation of a shelter (Ball Hut) remained unchanged through the years. The precision of the surveys has varied with the technology but was expected to be less than the surface elevation variation, estimated at ±30 m, which was taken as the uncertainty estimate of each survey.

For the Linda Glacier, changes to ice thickness in the upper region were assessed by manual photographic analysis. Over the years, the Linda Glacier has been photographed by climbers from nearby summits and from aircraft. A total of 30 images spanning 120 years were reviewed for this project; 4 of these are shown in Figure 2. In the images, the same rock outcrops can be seen. If an ice mass is thinning, rock outcrops will increase in size and the distance between outcrops will diminish. The lack of knowledge of camera position and optical parameters for the images, and the lack of a high-resolution digital elevation model (DEM) for the region, meant orthorectification of the images was a nontrivial task.

As a pragmatic solution to the problem of obtaining absolute measurements from the oblique photographs, relative measurements of the vertical change in interrock distance compared to rock size were used as an index of glacier thinning. On each photo, the vertical extent between 2 rock outcrops in the middle of the glacier was compared to the vertical extent of the lower rock (distances x and y, respectively, in Figure 2D); the ratio between these measurements becomes smaller if the glacier thins and exposes more rock. This ratio was used as an index of the thickness of the upper Linda Glacier. We acknowledge that this method is subject to high uncertainty, as photographs were taken at different times of the year, from different locations, with different cameras. Despite this, the method provides a first approximation of potential change in the upper Linda Glacier.

In addition to the photographic analysis, an assessment of surface elevation change along the Linda Glacier route using DEMs from 1986 and 2008 was undertaken, but large potential errors of the DEM data in steep terrain (Columbus et al 2011) meant that the detected thinning and steepening fell within the potential errors of the 1986 DEM surface ( Supplemental material, Appendix S1 and Figure S1 (mred-38-04-364-379_s01.pdf),  http://dx.doi.org/10.1659/MRD-JOURNAL-D-18-00042.S1).

Determination of change experience

To gain further understanding of changes on the Linda Glacier climbing route and how those changes are perceived and experienced, we consulted published historical accounts written by early climbers (eg Green 1883; Du Faur 1915; Bowie 1969; Dennistoun and Mannering 1999), present-day trip reports published online (eg,  www.summitpost.org), and intentions recorded by climbers in logbooks at Plateau and Haast Huts, and conducted our own semistructured interviews and email surveys. We wanted to capture the opinions and experiences of amateur (recreational) climbers and professional guides who had climbed the route once or, ideally, multiple times over multiple years. Climber responses remained anonymous and were only tagged as recreational (Rec) or professional (Guide) perspectives. Notes were taken during interviews, and participants were invited to read the notes at the end to ensure accuracy. Participants could also request a copy of the interview notes for their own records. In the case of published historical accounts, the authors' names were recorded.

Nine interviews were conducted with professional guides. Guides were selected using snowball sampling (Hay 2000; Tolich and Davidson 2011) and the New Zealand Mountain Guides Association online public database. To connect with recreational climbers, a request for volunteers was posted in the New Zealand Alpine Club's Climber magazine. This magazine is sent to all club members and is available for purchase by the general public at retail stores. Eight recreational climbers responded and completed the survey. Additional information about the contemporary recreational experience was obtained from written accounts published on the Internet. All material relating to people's experience of the route—for example, information about rockfalls, crevasses, and time taken—was analyzed for keywords and themes, and coded based on recurring concepts and viewpoints (Tolich and Davidson 2011). Comparisons were made within and between the recreational and professional responses and between time periods. In total, 45 qualitative sources of information were used.

Changing Tasman Glacier access

On 1 March 1882, from a camp on the terrace near the confluence of the Ball and Tasman Glaciers, Green, Kaufman, and Boss climbed up 20 m onto moraine and then up a further 7 m onto the Tasman Glacier's surface (Green 1883:199). They were embarking on the first attempt to climb Aoraki. They did not quite make it to the very top, but they proved the ascent route, which is now the most popular way to ascend and descend the mountain. Green's account of climbing Aoraki is a classic piece of New Zealand mountaineering history; his description of climbing up onto the Tasman Glacier provides one of the earliest benchmarks of the surface elevation of the Tasman Glacier. Since this time the ice has been thinning, a process referred to as downwasting. These changes were apparent to climbers who regularly visited the glacier; for example, Harper (1946) documented a 50-m lowering between 1889 and 1940. By the mid-1960s, ongoing thinning meant access to the glacier involved a descent down a “steep and rotten moraine wall for some 300 ft [100 m] to the present level of the moraine-covered ice” (Wilson 1968). Intermittent surveys (Table 1) in the region of Green's first observations have recorded over 200 m of surface lowering at an average rate of 2 m per year (Figure 3).

FIGURE 2

Photos of the upper Linda Glacier taken from Mt Tasman by (A) F. Du Faur, March 1912 (Ross 1930a); (B) H. K. Douglas, December 1935 (Bryant 1938); (C) B. Keir, December 1961; (D) R. Measures, November 2015. The Linda Glacier thinning index was derived by comparing the distances marked in section D as “x” and “y.”

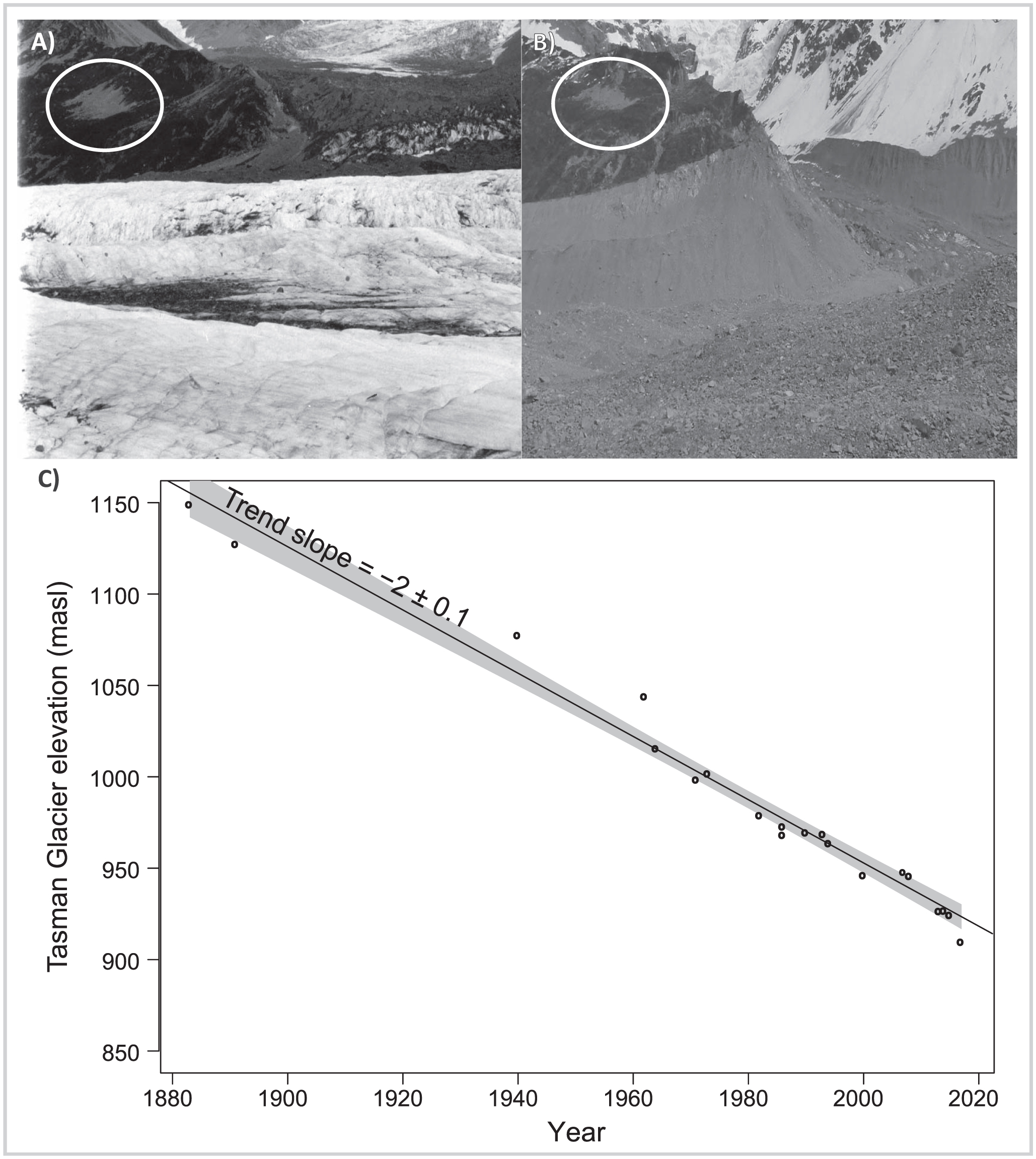

FIGURE 3

Changes on the lower Tasman Glacier. (A) Ball Glacier confluence in 1904 (photo courtesy of the Teichelmann Collection); (B) Ball Glacier confluence in 2017 (photo by T. Kerr); (C) elevations recorded 1883–2017 at the transect location shown in Figure 1C (data sources listed in Table 1). The circled scree slope in the top left in sections A and B provides an area of common reference.

These surveys were made across the 2-km-wide Tasman Glacier in the vicinity of the traditional access to the glacier (Figure 1C). This debris-covered part of the glacier is low angled (2°) and undulating (±30 m). No notable (from a climber's perspective) change in glacier gradient has occurred in association with the surface lowering. The surveyed surface elevations are largely representative of the lowering of the overall lower Tasman Glacier surface (from Haast Ridge south).

This lowering of the glacier surface has increased the size of the descent required for climbers to access the glacier from the Ball Hut region (Figure 3). The descent is loose and crumbly with high potential for rockfall. In addition, the slope has had a series of slow failures and slumps due to the loss of support from the ice, including fractures on the adjacent hillside (Blair 1994; Deline et al 2015, see figure 15.2), indicating that the effect of ice thinning extends beyond the moraine wall.

Today, increased use of aircraft access, due in part to deteriorating conditions on the lower part of the route (Wilson et al 2015), means that few recreational climbers or guides fully retrace Green's footsteps, traveling up the Tasman Valley and along the Tasman Glacier, so the change on this part of the route is not always experienced. But for those who do walk the entire way, changes are obvious. For example, a recreational climber noted that in 1968 they had to “drop down onto the Tasman Glacier,” being fully aware that Mannering's party in the late 1800s “had to climb up to get onto it” (Rec 1), and a number of respondents noted the deteriorating access via the moraine walls due to glacier recession (eg Recs 2, 4, and 6). This change in access is also reflected by a rapid decline in the number of climbers using the Haast Hut on their way to climb Aoraki since the early 1990s ( Supplemental material, Appendix S2 and Figure S2 (mred-38-04-364-379_s01.pdf),  http://dx.doi.org/10.1659/MRD-JOURNAL-D-18-00042.S1).

Changes in Linda Glacier and the summit region

Comparison of early photographs with more recent photographs (Figure 2) shows very little discernible change in the upper Linda Glacier. The only notable change is to the summit itself, which was lowered by approximately 10 m during a major rockfall in December 1991 (Chinn et al 1992), with subsequent erosion and settling of the summit ice cap further reducing the elevation of the High Peak by another 20 m, giving a current summit height of 3724 m above sea level (Sirguey et al 2014). Results from the photographic analysis (Table 2) indicated no statistically significant ice-thinning trend over time (Figure 4).

From a mountaineering perspective, the access through the Linda Glacier is generally considered the determinant of whether or not the route can be successfully climbed. Crevasses and bergschrunds in the Linda Glacier have always presented a challenge. When Green's party first ascended the glacier (in March), they noted numerous crevasses in the lower section, requiring a lot of zigzagging, and further up, crevasses spanned the entire glacier width (Green 1883). Du Faur (1915) described winding back and forth around crevasses, crossing snow bridges, and even climbing down into and out of crevasses in order to negotiate a way through, in a December 1911 climb of Mt Dampier that required Linda Glacier access.

In this regard, interviews with and email surveys of climbers provided further insight. Half of the recreational climbers surveyed had climbed the route twice, with time between ascents ranging from 3 to 20 years. All of the guides had climbed the route multiple times, some more than 20 times over 3 decades (eg Guides 1, 4–6, 8, 9). The total number of experiences of the route from which the guides provided information exceeded 150, enabling them to comment on change over time, providing information that cannot be gained from one-off experiences.

Many of the guides (Guides 3–7, 9) and a recreational climber (Rec 6) noted a general shortening of the climbing season due to crevasses and bergschrunds being exposed earlier and becoming larger (Table 3), with some guides saying that now they generally would not book guided ascents after the first week of January (Guides 3 and 6). Although large interannual variability in conditions made it difficult for the guides to pinpoint the time of this change, they noted that through the 1980s and 1990s the route was in good condition from November to March, but since the 2000s, and particularly since around 2012, the route could be cut off by mid-January (Guides 3, 4, 9). Data on the last date of a successful ascent via the Linda Glacier, as recorded in the Haast and Plateau Hut logbooks, support the later ascent dates in the 1980s and 1990s, with some more recent years showing an earlier cutoff; but when viewed over the entire time period (1882–present), no trend is apparent (Figure 5).

There was strong agreement about an increase in the steepness of the upper Linda Glacier (see also  Supplemental material, Appendix S1 (mred-38-04-364-379_s01.pdf),  http://dx.doi.org/10.1659/MRDJOURNAL-D-18-00042.S1), believed to be associated with glacier thinning (Guides 1, 3–8, Rec 8). A number reported seeing increased (and new) rock exposure—for example on the upper ice cap (Guides 1, 3–8). This was viewed as a sign of thinning, and some respondents linked this to an increase in rockfall activity (Guides 3 and 5).

In concert with the above observations, all guides strongly emphasized the importance of seasonality, separating change they associated with environmental/climate change (eg downwasting) from interannual/seasonal changes (eg icefall, snow cover on the upper mountain). They noted that access through the Linda Glacier is strongly influenced by year-to-year variability in snowfall and summer melting. For example, Guide 4 noted, “If alpine glaciers get regular coverings of nice white snow during a summer season (even if only small), then this white cover reflects well and there is less severe crevassing during and [in the] late season.” Here the guide identified the relationship between surface albedo and glacier melt and the importance of summer snowfall to glacier mass balance (Oerlemans and Klok 2004).

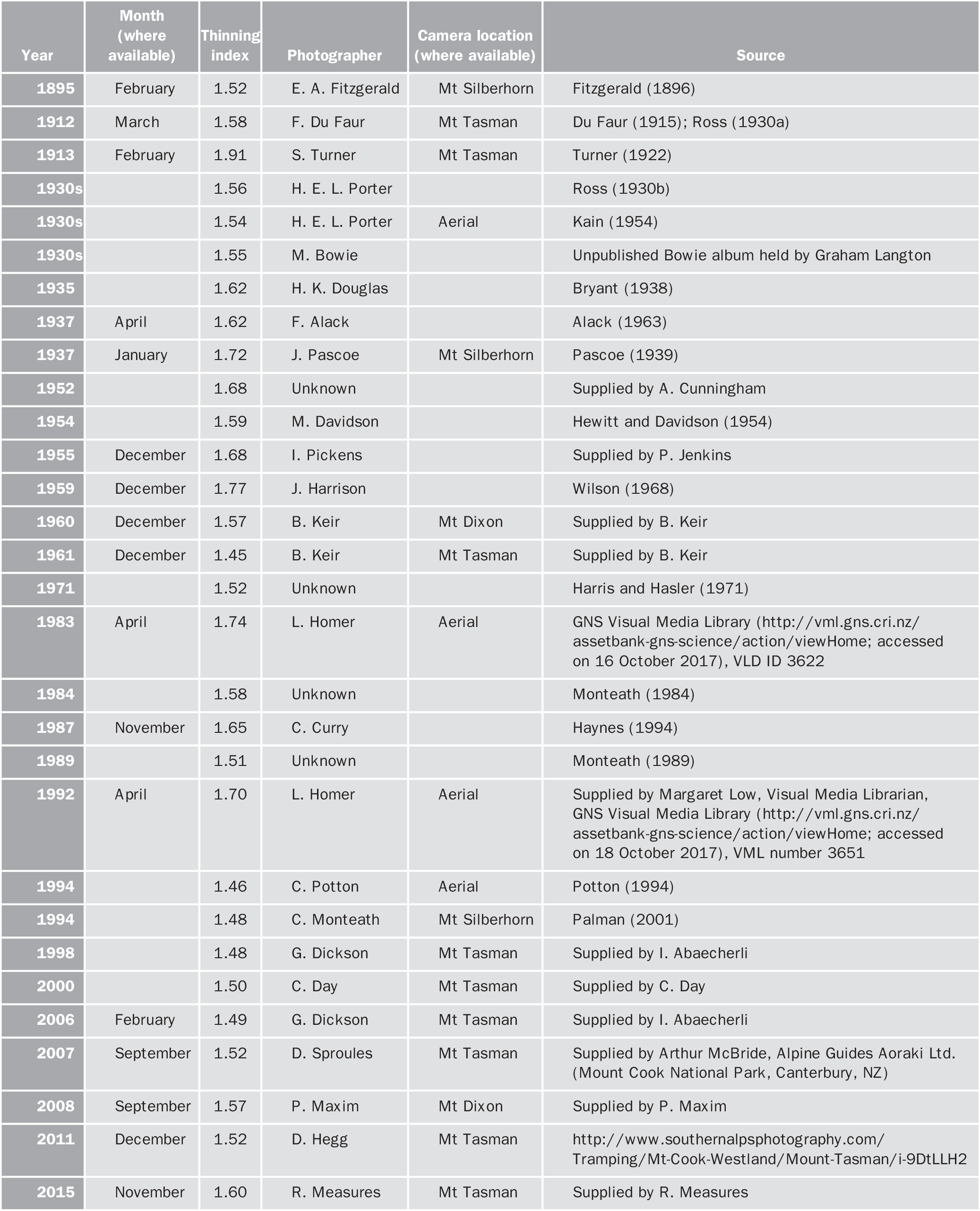

TABLE 2

Upper Linda Glacier photo attributes and thinning index.

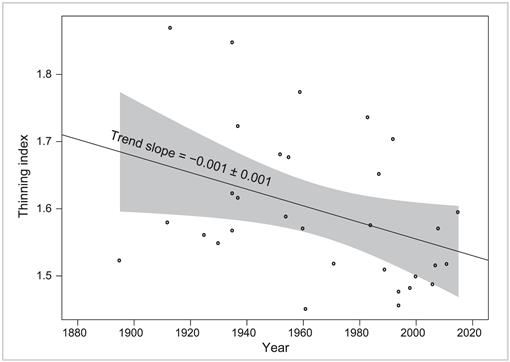

FIGURE 4

Thinning index for the upper Linda Glacier, 1895–2015, based on the ratio of photographed rock exposure (circles) as shown in Figure 2D. The grey area represents the 95% confidence level of the trend slope.

The cyclic behavior of icefall, especially in the upper part of the Linda Glacier, was noted to strongly influence access through crevasses and major bergschrunds, so in some years, access remains good even into late February (Guides 3, 5, 8). The condition of the summit rocks was also listed as a seasonal factor that influenced the technical difficulty of the climb—in particular, whether the summit rocks were covered with snow, ice, or bare rock (Guide 1, Recs 5, 8). Guides who had been climbing the route since the 1970s or 1980s generally related changes in the upper Linda Glacier with year-to-year variability, while newer guides associated some of the changes (eg crevasses opening earlier) with climate change.

Ice thinning

A common theme highlighted throughout this research was the implication of ice volume loss for climber access Downwasting of the lower Tasman Glacier surface (Table 1, Figure 3) has resulted in significant change on the lower section of the climbing route, with climbers now required to descend a large moraine wall to access the glacier. The steep, loose moraine wall also needs to be ascended in order to continue on to the Grand Plateau via either the Haast Ridge or Boys Glacier.

The rate of thinning of the lower Tasman Glacier from 1883 to 2017 has been approximately 2 m per year; climbers already reported the impact of downwasting in the 1940s (eg Harper 1946). Annual surface ablation in this debris-covered region of the glacier is in the order of 7 m water equivalent (Purdie 2011), indicating that ice melt can account for the majority of lowering. The importance of surface lowering (geodetic adjustment) to glacier melt was highlighted by Huss et al (2012). Although the debris cover (which suppresses melting) is expanding upglacier over time (Kirkbride 2000), the fact that the surface is now 200 m lower than it was in the late 1800s means that, based on the measured temperature lapse rate (5.5°C km^-1, Kerr 2005), the near-surface air temperature in this region of the glacier will have increased by approximately 1°C, irrespective of climate change.

FIGURE 5

Last ascent of the year via the Linda Glacier route, 1882–2017, as recorded in Haast and Plateau Hut logbooks, and the average Southern Alps end-ofsummer snowline departure from the long-term mean (m), 1977–2017, as reported in Willsman et al (2017).

Surface velocity in the region where climbers access the Tasman Glacier is approximately 80 m per year (eg Redpath et al 2013; Haritashya et al 2015), but significant interannual variability (30–115 m) was recorded between 2000 and 2010, with a notable velocity increase in 2008 (Redpath 2011) coincident with a period of rapid lake expansion (Dykes et al 2011). More recently (2012–2014), velocity has decelerated in this region (Haritashya et al 2015). This deceleration indicates that ice thinning is unlikely to be driven by dynamic processes (Meier et al 2007; Pritchard et al 2009).

The fact that our photographic analysis could not unambiguously determine a thinning trend in the upper Linda Glacier (Figure 4) is not surprising, considering the guides' emphasis on the importance of seasonal variability. Even so, there are observations that indicate some change may be occurring—for example, slope steepening and new rock exposure. Temperature– elevation relationships (Cuffey and Paterson 2010) result in ice thinning being greater at lower elevations than higher up the mountain, but where a strong disequilibrium exists, glacier accumulation areas can experience significant thinning (Pelto and Hartzell 2004). Thinning at lower elevations with more subdued thinning at higher elevations has the effect of increasing the overall glacier slope, an effect exacerbated in regions with steep headwalls. Bed undulations are more strongly expressed at the surface of a thinner ice mass (Budd 1970; Schwitter and Raymond 1993; Gessese et al 2015), and undulations are enhanced on glaciers where basal sliding comprises a large component of ice movement (Gudmundsson 2003). Increased ice tension associated with steeper, more undulating ice results in crevassing (Colgan et al 2016). Lack of surface velocity data for the Linda Glacier (Ruddell 1995; Herman et al 2011) prevents assessment of whether variability in crevasse exposure can be attributed (at least in part) to temporal variability in ice flow.

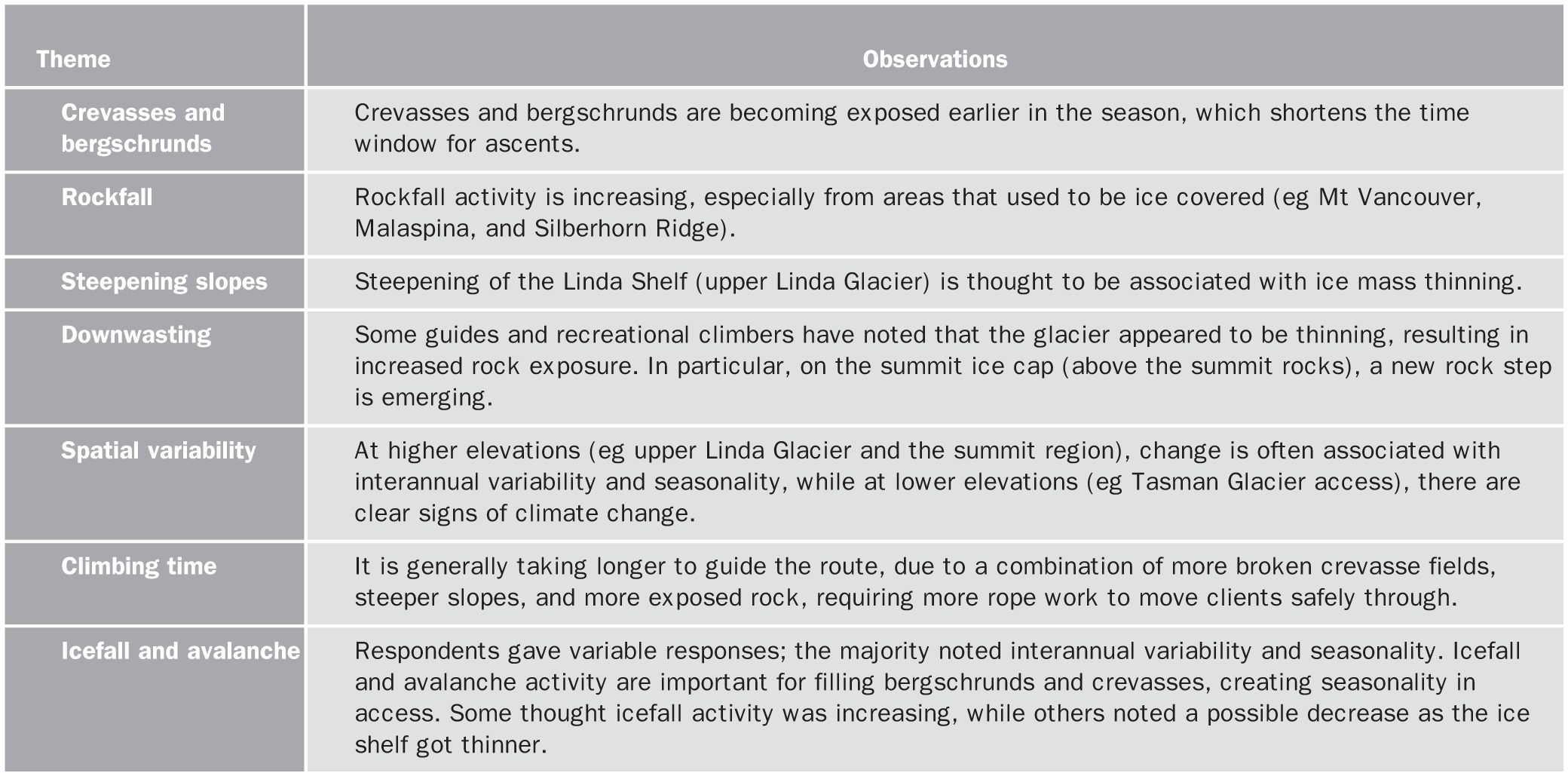

TABLE 3

Key themes that emerged from observations by recreational climbers and local mountain guides on changes to the Linda Glacier route.

Reports of new rock exposure high on the route do indicate that the ice mass may be thinning, but relationships between ice thinning and rockfall activity are more complex (Fischer et al 2012; Huggel, Clague, et al 2012). Poor-quality rock and rockfall activity have been characteristic of the route since it was first explored (Green 1883; Du Faur 1915). Over the years there have been a number of large rockfall events (Cox et al 2008; Allen et al 2011; Hancox and Thomson 2013), including the Aoraki Mount Cook rock avalanche, which saw 12 million m³ of rock, snow, and ice collapse down the east face and onto the Tasman Glacier (Chinn et al 1992).

The mountains in Aoraki Mount Cook National Park are highly faulted, including well-exposed faults on Haast Ridge and the east face of Aoraki (Cox et al 2012). The fractured nature of the rocks and relatively rapid uplift mean that rockfall activity is normal and not necessarily associated with changing climate (Cox et al 2015). A recent increase in rockfall activity in a number of alpine regions (eg the European Alps and Alaska) has been linked to ice thinning, which exposes the underlying steep, highly fractured rock surfaces (Huggel, Allen, et al 2012; Deline et al 2015), but a direct link to degrading permafrost and increased air temperatures remains tenuous (Allen et al 2009; Fischer et al 2012; Huggel, Allen, et al 2012). The Linda Glacier route has always been known for rockfall activity, but reports of new activity from previously snowand ice-covered slopes suggest the route is changing. However, rockfall has many drivers, so any change in rockfall activity must be considered in a wider geologic and geomorphic setting.

Internationally, research on the implications of changing snow and ice volume for alpine recreation has mainly focused on skiing (eg Olefs and Fischer 2008; Steiger and Mayer 2008; Uhlmann et al 2009; Olefs et al 2010; Fischer et al 2011). Indeed, Beniston (2003) suggested that mountaineering and hiking may in part compensate for the loss of skiing in some alpine regions. In a case study of the Austrian Alps, Ritter et al (2012) identified a number of phenomena that our findings have mirrored—for example, thinner snow bridges, an increased number of open crevasses, and increased danger of rockfall. In a study of the North Cascades, Hammond and Pelto (2015) noted that although glacier thinning led to fewer crevasses as ice flow slowed, increased melt rates meant that crevasses were wider and exposed earlier as seasonal snow was reduced, making navigation more difficult.

Spatial and temporal variability on the Linda Glacier route

Temperature–elevation relationships drive spatial variability in a number of alpine processes, including snow and ice melt, the partitioning of snow and rain, and albedo feedbacks (Oerlemans and Klok 2004; Anderson et al 2010; Anderson and Mackintosh 2012). Variability in these processes over space has led to change being more apparent lower on the climbing route than at higher elevations. At lower elevations there was clear agreement between changes measured by physical survey and changes observed and experienced by climbers, none more so than the extensive downwasting of the lower Tasman Glacier (Figure 3). Higher up the route, measured physical change was harder to quantify (Figures 2 and 4). Climbers associated change higher up on the mountain with year-to-year variability in snow accumulation, icefall activity, and weather conditions during the climbing season, but described changes at lower elevations in the context of climate change. These results are reflective of research on glaciers in the European Alps, where at high elevations glacier mass balance is dominated by winter precipitation, but at lower elevations increasingly negative mass balance and surface lowering were evident due to summer warming (Vincent 2002; Fischer 2010).

The dominance of seasonal and short-term processes at higher elevations makes it hard to discern long-term change. New Zealand's maritime climate means that snow falls in mountain regions year round, although mostly in winter and spring (Fitzharris et al 1999). Clearly the depth of the snowpack at the beginning of the climbing season will influence the time taken for crevasses in the Linda Glacier to become exposed the following summer. Seasons with high snow accumulation were noted as having the added bonus that increased avalanche activity further filled crevasses. The rate at which the seasonal snow melts away, exposing crevasses and removing snow bridges, is influenced by seasonal weather (eg air temperature, cloud cover, frequency of rain or snow) and the longer-term warming trend.

In addition to fluctuations in seasonal snow, icefall activity was also acknowledged to strongly influence access up the Linda Glacier. Icefall activity (ice avalanche) is known to follow cyclic patterns (Alean 1985; Pralong and Funk 2006). For example, in the French Alps, a hanging glacier took 6 months to recharge after a substantial collapse (Vincent et al 2015). Although glacier mass balance strongly influences ice flux in the fracture zone and hence icefall frequency, in temperate (warm) ice, heavy rain or warming also increases icefall activity (Pralong and Funk 2006). In Aoraki Mount Cook, the frequency of ice avalanche in the Mueller Glacier area was found to be significantly higher in summer, and relationships were found between event frequency and meteorological conditions, especially temperature and rainfall (Iseli 1991; Kochel et al 2018).

Although there are no mass balance measurements for the Linda Glacier, since 1977 a photographic survey of the position of the end-of-summer snowline has been conducted for 50 Southern Alps glaciers, providing a mass balance proxy (Willsman et al 2017). These data show that, from the mid-1980s through the 1990s, the end-ofsummer snowline on glaciers in the Southern Alps was generally lower than their long-term average (1977–2017) (Figure 5), and a number of glaciers advanced (Chinn 1999; Mackintosh et al 2017). Periods of positive mass gain on New Zealand glaciers have been attributed to discrete periods of reduced air temperature associated with anomalous southerly winds and low sea surface temperature in the Tasman Sea region (Mackintosh et al 2017). Airflow and sea surface temperature anomalies in the New Zealand region have also been linked to the Interdecadal Pacific Oscillation (Salinger et al 2001), which entered a positive phase in 1978, favoring positive glacier mass balance, but returned in 2000 to a negative phase, favoring negative mass balance (Fitzharris et al 2007; Henley 2017). Since 2006 the cumulative mass balance of glaciers in the Southern Alps has been negative (Willsman et al 2017). The ensemble of processes that influence climbing conditions high on Aoraki makes it challenging to conclude whether the observed breakup of the Linda Glacier in the most recent years is a flow-on effect of the long-term warming trend, or another chapter in the story of decadal-scale variability.
