The tribe Bactrophorini of the Bactrophorinae is briefly reviewed. Two new genera are erected: Mayalina, and Hylaezentia. Three new species (M. cohni, M. teapensis and M. chajulensis) of Mayalina are described. A key to the genera of the tribe is included.
A cladistic analysis of morphological characters indicates that the Bactrophorini genera fall into two well-supported clades. The first, (“Hyleacrae”, after its most basal member) has as its basal branches, the exclusively Amazonian Hyleacris and the Amazonian and Central American Bactrophora; as its crown group it contains all the remaining Central American genera except Mezentia. The Central American genera of the Hyleacrae fall into two lineages: first, the sister genera Cristobalina and Mayalina (the “Cristobalina genus group”) of Mexico, Guatemala, and Honduras, and secondly the “Rhicnoderma genus group”, composed of four genera (Rhicnoderma Gerstaecker, 1889, Lempira (Rehn, 1938) and Pararhicnoderma Rowell, 2012, which occur from Southern Mexico south to Panama, plus the Panamanian endemic Panamacris Rehn, 1938, which is apparently the sister genus of Rhicnoderma).
The second clade of the tribe (“Borae”, after its most basal member, Bora) contains four exclusively Amazonian genera, plus the fifth and most derived genus, Mezentia, which has both Central American and Colombian species. In the Borae there is a second basal genus, Silacris, and then a crown group consisting of three very closely related genera, Mezentia, Andeomezentia and Hylaezentia, here referred to as the “Mezentia genus group”.
Preface
In the middle of the 1990s Dr. Christiane Amedegnato (CA) gathered together at the Paris museum (MNHN) all available specimens of the Bactrophorini, soliciting them both from the major museums and from private collections, such as that of CHFR. She worked on this material intermittently over the next 10 y, with the intention of reviewing the tribe. Early in 2010 CHFR wrote to her requesting news of her progress and the return of his specimens. In her reply she indicated that she was seriously ill with cancer, enclosed a variety of computer files documenting some aspects of her work on the Bactrophorini and gave instructions that he should deal with these materials as he felt fit.
Dr. Amedegnato died on 20th June, 2010, without having published anything further on the Bactrophorini, and leaving no completed manuscript. Early in September, 2010 CHFR and SP met in the MNHN to review the digital materials and the available specimens and to consider what should be done with them. Unfortunately, CA left us no anatomical drawings or descriptions of the new species she proposed to erect. Further, it was not practical either to transfer all the specimens (which included, beside the loaned materials mentioned above, the extensive holdings of the MNHN itself, mostly collected by CA, SP and the late M. Descamps) to CHFR's laboratory in Switzerland, nor for him to spend an extended period in Paris to work on the specimens there. We therefore decided against attempting the full scale review of the Bactrophorini which had been CA's original intention.
On the other hand, CA had prepared a morphological character matrix for nearly all the Bactrophorine genera, including all those already published and several new ones which she proposed to erect, in preparation for a cladistic analysis. It is essentially this material we present here, the analysis of her matrix having yielded a well-supported phylogeny. Inevitably, it includes some rather poorly defined taxa: these are the new genera that CA proposed to erect, presumably before publishing the phylogeny, but never did. We think however, that the value of the analysis outweighs this defect.
Introduction
The Bactrophorini are one of three tribes into which the Neotropical subfamily Bactrophorinae Amedegnato, 1974 is divided: the Taeniophorini Brunner von Wattenwyl, 1893, the Ophthalmolampini Descamps, 1978, and the Bactrophorini Amedegnato, 1974. Early in 2011 the tribe contained only 9 valid genera and 21 valid species. It thus comprises only a small part of the subfamily as a whole (36 valid genera, 195 valid species (Eades et al., accessed September 2010). The subfamily is poorly known and many further species are awaiting description, or probably are still unknown. The majority are arboreal grasshoppers of the Neotropical rain forest, and both their collection and their observation are very difficult.
Amedegnato (1974) gave the Bactrophorinae subfamily rank (originally under the name Trybliophorinae, but the original type genus Trybliophorus later transpired to be a Romaleine) and grouped them with the Romaleinae as the family Romaleidae. This allotment of the Bactrophorinae was made primarily on the basis of their male genitalia, which Amedegnato (1977) interpreted as a primitive version of the form characteristic of the rest of the Romaleidae (see also the Discussion below, p. 105); in that work and elsewhere (e.g., Amedegnato & Descamps 1983) she refers to them as the most archaic of all the Cryptosacci [a term coined by Roberts (1943) to denote the more advanced subfamilies of acridoid grasshoppers — it is derived from phallic anatomy]. Molecular systematics, though to date using only mitochondrial ribosomal DNA sequences (Rowell & Flook 1998), confirm that the subfamily are indeed a rather early branch of the Acridoidea, but have not to date succeeded in linking them to the Romaleinae in a single clade corresponding to a family Romaleidae.
The characters thought to link the Bactrophorinae in general to the Romaleinae are the simple form of the cingulum, the aedeagus being either absent or consisting only of undifferentiated ventral and dorsal endophallic sclerites, the lack of a pre-apical diverticulum to the spermatheca, and the presence of an external apical spine on the hind tibia.
General Description.—The subfamily Bactrophorinae includes insects ranging from small to large size, usually brachypterous or micropterous, sometimes apterous, with powerful jumping hind legs, often large globular protruding eyes, and long antennae; the second tarsal joint of their hind foot is elongate, as long or nearly as long as the first joint. The tarsi, the hind tibiae, and the lower surfaces of the abdomen are richly provided with sensory hairs. Many species (especially in the tribes Taeniophorini and Ophthalmolampini) are brightly colored, and they probably rely mostly on visual intraspecific communication; they have no stridulatory apparatus and often no tympanum.
The tribe Bactrophorini consists predominantly of arboreal forms adapted for lying along medium-sized twigs; the thoracic sterna are concave to accomodate such a support, and the relatively wide, hair-fringed femora are arranged at rest to disrupt the outline of the animal and allow it to blend with the twig. Some genera (especially Bactrophora itself) have elongated rostra, which probably also serve a disruptive function. Females are usually bark colored, males are often similarly colored but in some genera tend to be green with smaller black, white, yellow or red markings. Both sexes are remarkably cryptic in their natural habitat. With one exception (Mayalina n.g.) the ovipositor valves are unmodified and apparently indicate oviposition in the ground.
Bactophorini diagnosis.—Size moderate to large. Body form cylindrical, sometimes massive. Head orthognath or moderately prognath (except in Mayalina).
Fastigium variable, from extremely elongated (Bactrophora) to almost absent (Rhicnoderma, Mezentia). Lateral carinae of face and frontal ridge well marked. Eyes relatively small for the subfamily (except in Cristobalina and Mayalina). Interocular space wide, equal to or greater than the width of the frontal ridge between the antennae. Antennae filiform, with 20–25 flagellar segments. Pronotum usually cylindrical or sometimes (Mezentia, Cristobalina) selliform, very short, often exposing the mesothoracic notum. Disc of pronotum cut by up to 4 sulci. Lateral and medial pronotal carinae absent, except in the females of Lempira and Pararhicnoderma, where the median carina is somewhat nodular, or in Cristobalina & Mayalina, where it is cristate and toothed. Posterior margin of pronotum rectangular, slightly excurved in brachypterous genera. Anterior margin of pronotum typically slightly emarginate in midline, with two flanking projections overhanging the vertex. Prosternal process sometimes cylindrical, but typically transverse, anteroposterior compressed, the corners produced, with a tendency to become more or less bifid. Meso- and metasternum slightly concave. Mesosternal space variable.
Fore and middle femora short, robust, sometimes laterally compressed. Hind femora fairly short, not exceeding tip of the abdomen; length of femur divided by its maximum width varies from 3.5 to ≥ 5.0. Hind tibiae noticeably hairy; 6–9 external and internal tibial spines, the inner spines sometimes strongly developed and inwardly curved. Hind tarsi very elongate, cylindrical and hairy.
Brachypterous or apterous; rudimentary elytra present in Bora and Cristobalina. Elytra if present densely reticulate, wings cycloid, blackish in color except in Bactrophora, where they are orange, and Mezentia, where they are sometimes clear, sometimes infumate. Tympanum present or absent. Tenth abdominal tergite often divided, sometimes specialized. Supra-anal plate more or less triangular, divided into two by a transverse furrow, sometimes with a long tongue-shaped posterior process. Male cerci variable, from short and styliform to complex, depending on the genus. Ovipositor valves robust, except in Mayalina. Male subgenital plate normal or long and pointed, sometimes bifid at the tip. Female subgenital plate usually normal, but ornamented with longitudinal ridges in the Mezentia genus group.
Genitalia.—The phallus is characterised by a particular type of epiphallus, and in some genera (the Rhicnoderma genus group) by having the middle and posterior parts of the endophallus in the form of two simple elongate rods.
a/ Epiphallic layer: lateroventral sclerites present or absent. When present, sometimes very large and more or less specialized. Epiphallus bridge shaped, varying from very small (width less than 20% of the length of the middle and posterior parts of the endophallus, Rhicnoderma genus group) to considerably larger (50–80%). Ancorae very inconspicuous, barely visible, usually poorly differentiated from the anterior processes of the lateral plates. Lophi usually digitiform and hooked, sometimes with a tendency to being flattened and fused with the posterior processes of the lateral plates. Oval sclerites sometimes present, varying in size.
b/ Ectophallic layer: cingulum poorly differentiated, sometimes capsular, frequently having an internal mediodorsal ridge; cingular apodemes almost absent or only roughly indicated, never long, always flat and sometimes massive. The rami meet or even fuse ventrally, are simple without any particular elaboration, or have a posteroventral projection from the zone of fusion. Zygoma with a mediodorsal projection, varyingly developed, either unitary or bilobed.
The ectophallic sheath covering the ends of the endophallic sclerites varies in form among the various genus groups, and sometimes (Rhicnoderma genus group) forms “aedeagal valves” in which the endophallic sclerites play no part. Arch of the cingulum absent, but sometimes there is a yoke (a “pseudoarch”) formed from a thickening of the ecto-endophallic fold (Mezentia genus group).
c/ Endophallic layer: ejaculatory and spermatophore sacs both voluminous, sometimes bifid. The ejaculatory sac is often provided with tendon-like muscle attachments. The endophallic sclerites sometimes (Rhicnoderma genus group) have the form of long fine laterodorsal rods, completely lacking a differentiated posterior part and without a flexure. The apodemes of the endophallic sclerites are of variable size. Gonopore process thick and digitiform.
Female genitalia.—Subgenital plate with well-developed Comstock-Kellog pouches. Postvaginal sclerites present, but not very thick, mostly without columellae. Basivalvular sclerites present, but poorly differentiated. Base of the bursa copulatrix generally tubular, the orifice reinforced by a small crescent-shaped sclerite. Spermatheca with no pre-apical diverticulum.
Taxonomy
The tribe currently comprises 11 genera (Andeomezentia Amedegnato & Poulain, 1994, Bactrophora Westwood, 1842, Bora Amedegnato & Descamps, 1979, Cristobalina Rehn, 1938, Hyleacris Amedegnato & Descamps, 1979, Lempira Rehn, 1938, Mezentia Stål, 1878, Panamacris Rehn, 1938, Pararhicnoderma Rowell, 2012, Rhicnoderma Gerstaecker, 1889 and Silacris Amedegnato & Descamps, 1979). Together these genera extend from southern Mexico (Vera Cruz, Tabasco, Oaxaca, Chiapas, Guerrero) to Ecuador, Brazil (Paraa) and Amazonian Peru (Loreto); that is, between about 17°N and S latitudes. Only 7 of these genera, Bactrophora, Cristobalina, Lempira, Mezentia, Pararhicnoderma, Panamacris and Rhicnoderma, are present in Central America. Of these 7, only Bactrophora and Mezentia are also found in S. America, the other 5 are confined to Central America.

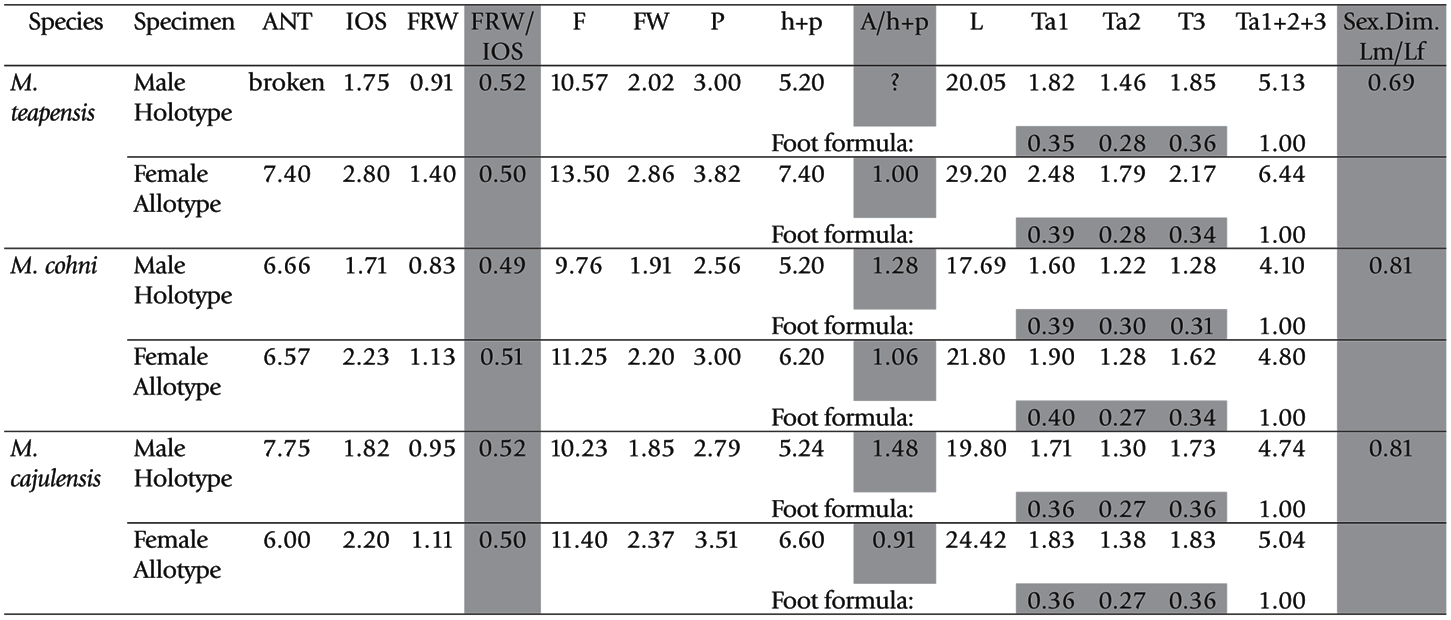

Table 1.
Mayalina spp. nov. Dimensions (in millimetres). Character abbreviations: L, length of body from frons to tip of abdomen. F, length of hind femur. FW, maximal width of hind femur. IOS, interocular space. FRW, width of frontal ridge (taken at level of antennae). A, length of antennal flagellum. h+p, length of head plus pronotum. Ta1, Ta2, Ta3, lengths of first, second and third tarsal joints of the hind foot. “Foot formula”, the relative lengths (as percentage of their total) of first, second and third tarsal joints of the hind foot. Shaded cells are ratios, not dimensions.
Dr. Amedegnato proposed to erect 2 new genera, bringing the total for the tribe up to 13. They were 1) Mayalina, a Guatemalan and Mexican genus closely related to Cristobalina, 2) Hylaezentia, an exclusively Amazonian genus closely related to Mezentia. 3) She also intended to elevate Lempira Rehn, 1938 from its original status as a subgenus of Rhicnoderma.
She further proposed to describe numerous new species, belonging to the genera Bactrophora, Lempira, Mezentia, Rhicnoderma, Pararhicnoderma, Cristobalina, Mayalina and Hylaezentia. Other than the 3 new species of Mayalina (below), and 4 species of Pararhicnoderma and one of Lempira described by Rowell (2012), these are mostly left undescribed in the present work, but may be defined in a later one. Most of the relevant specimens are deposited in the MNHN.
Key to the genera of the Bactrophorini
1(10) Male cercus wide, complex, flattened and recurved or with an internal fork 2
2(3) Apterous insects, tympanum absent; inner spines of hind tibia not modified; male cercus short and flat with a small internal apical apophysis Bora Amedegnato & Descamps
3(2) Winged insects; inner spines of hind tibia very strong and recurved 4
4(9) Last abdominal tergite of male heavily modified, inflated; male supra-anal plate subrectangular; ventral surface of female subgenital plate ornamented with melanic ridges 5
5(8) Male cercus recurved, wide and flat, without internal apophyses 6
6(7) Pronotum cylindrical, posterior part of pronotum not modified Hylaezentia nov.
7(6) Posterior part of pronotum inflated Mezentia Stål
8(5) Male cercus wide, recurved, with a large internal apophysis Andeomezentia Amedegnato & Poulain
9(4) Last abdominal tergite of male little modified; male supraanal plate triangular; male cercus conical with an internal basal apophysis; pronotum regularly cylindrical (Female unknown) Silacris Amedegnato & Descamps
10(1) Male cercus simple and styliform, long, or short and conical 11
11(14) Fastigium of vertex projecting far in front of eyes; male cercus long and recurved 12
12(13) Fastigium extremely long; fully winged or brachypterous insects with a tympanum Bactrophora Westwood
13(12) Fastigium relatively short; brachypterous or apterous insects with no tympanum Hyleacris Amedegnato & Descamps
14(11) Fastigium of vertex not projecting far beyond eyes; apterous insects with no tympanum 15
15(18) Mesonotum completely covered by pronotum; interocular space twice as wide as frontal ridge; eyes very prominent; medial carina of pronotum partially cristate; prosternai process transverse 16
16(17) Ovipositor valves somewhat regressed; prosternai process deeply bifid; medial pronotal carina of female elevated and toothed, highest in the prozona; male subgenital plate bifid apically; completely apterous Mayalina nov.
17(16) Ovipositor valves normal; prosternai process low, flattened on its front face, entire, not bifid; pronotum selliform; medial pronotal carina present, cristate and elevated at its anterior and especially posterior ends; male subgenital plate not bifid; medial abdominal carina of female toothed. Elytral rudiments present Cristobalina Rehn
18(15) Mesonotum partly or entirely visible. Elytra completely absent 19
19(20) Ventral carinae of the hind femur toothed; rear margin of pronotum slightly inflated. Adults vividly colored in black, orange and green Panamacris Rehn
20(19) Ventral carinae of hind femur smooth, not toothed; medial pronotal carina of female flat or nodular 21
21(22) Mesonotum only partially visible; medial carina of female pronotum cristate at front and especially at rear; male subgenital plate long and narrow; female lacks a small process on medial carina of 2nd abdominal segment Lempira Rehn
22(21) Mesonotum completely visible. Medial carina of pronotum not cristate 23
23(24) Subgenital plate of male usually bifid at its tip; 2nd abdominal tergite of female bears small process on medial carina (Rowell 2012, Plate 22); lateral lobes of male pronotum marked with a pale horizontal stripe. Disc of female pronotum often with lumpy processes Pararhicnoderma Rowell
24(23) Subgenital plate of male always entire not bifid at its tip. Second abdominal segment of female without any elaboration of medial carina; lateral lobes of male pronotum unicolorous, without a pale stripe; first abdominal tergite often ringed by a pale band, vivid in male Rhicnoderma Gerstaecker
Generic descriptions
4. Mayalina gen. nov.
Etymology.—Named for the Maya, a modern Central American ethnic group and pre-Columbian Mesoamerican culture, in whose territories the genus occurs. Name formed by analogy with the sister genus Cristobalina Rehn, 1938.
Type species.—Mayalina cohni, n. sp.
Diagnosis.—In general appearance (Fig. 1, Plate 1) closely similar to Cristobalina Rehn, 1938. Both genera are rather small for the tribe, with body length approaching 20 mm in males, up to 30 mm in females (dimensions: see Table 1); noticeably sexually dimorphic in size, male body length about 70% that of female. Integument rugose, richly decorated with small tubercles, especially on head and thorax and dorsal areas of the abdomen.
Antenna filiform, the segments of the flagellum slightly flattened; 18–19 flagellar segments, antennae about as long as (females) or somewhat longer than (males) the head and pronotum combined. Eyes hemispherical, protuberant, more so than in the Rhicnoderma genus group. The interocular space is approximately twice as wide as the frontal ridge. The interocular space is decorated with three small tubercles, placed in a transverse line between the eyes, as in most species of Pararhicnoderma. Fastigium slopes steeply downward from this point, joining the greatly abbreviated frontal ridge just above the antennal bases. (The fastigium is very similar to that of Cristobalina and Pararhicnoderma). Frontal ridge dorsal to the medial ocellus short, deeply sulcate, with very prominent fin-like lateral carinae; below the medial ocellus subobsolete, diverging slightly towards the clypeal suture. Lateral carinae of frons strong, diverging downwards, the face being thus markedly trapezoidal in frontal view. Labrum and all mouthparts rotated backwards through nearly 90 °, lying almost horizontally below the genae.
The metazona of the pronotum is short, but completely or almost completely covers the mesonotum, in the latter case leaving only a narrow strip exposed. Lateral carinae of pronotum absent, medial carina of the pronotum nodular and to some degree cristate, with a prominent projection in the prozona and one or two lower ones at the rear of the metazona. Disc of pronotum crossed by only one sulcus, which appears to correspond to the third sulcus of other bactrophorine genera. The first and fourth pronotal sulci are visible on the lateral lobes, but do not attain the disc. Anterior margin of pronotum with a midline embayment flanked by two short pointed lobes overhanging the vertex. Posterior margin of pronotum straight or slightly concave. Apterous and atympanate. Prosternai process deeply bifid, ending in two well-separated points (Fig. 2). Mesosternal interspace open, approximately as wide as long, metasternal interspace almost closed, transverse, and curved towards the rear in the midline. Thoracic sterna slightly concave.
Fore- and midfemora somewhat inflated, rugose. Hind femora slender, slightly shorter than abdomen. All hind femoral carinae are decorated with nodules, and the dorsal medial carina is shallowly but distinctly toothed, ending at the knee in a short blunt point. Ventral lobes of knee rounded. Outer lateral face of hind femur with a heavy “herring bone” pattern of nodular ridges marking the attachments of the fast extensor tibiae muscles (Fig 1, Plate 1). Hind tibia with eight external spines, including an apical spine, and 9 internal spines. Internal tibial spurs slightly more robust than the external spurs. Hind foot long, all three tarsal segments subequal, the second segment being slightly shorter than the other two. Foot formula within the following ranges: 0.35–0.40:0.27–0.30:0.34–0.36.
Abdominal segments with a prominent medial carina, more strongly developed towards posterior margin of segments, sometimes forming a blunt process. Male subgenital plate smoothly rounded basally, pointed and shallowly bifid apically (Fig. 3A, B). Male furcula small and indistinct (Fig. 3A). Supra-anal plate elongate-triangular, with smoothly rounded lingulate tip. Cerci simple, straight and styliform, pointed.
Female subgenital plate with simple smooth posterior margins, slanting in towards the egg guide. Ovipositor valves (Fig. 3C, D) short, barely or not exceeding the supra-anal plate, with smooth or very slightly serrrate rounded margins. Upper surface of dorsal valves deeply furrowed.

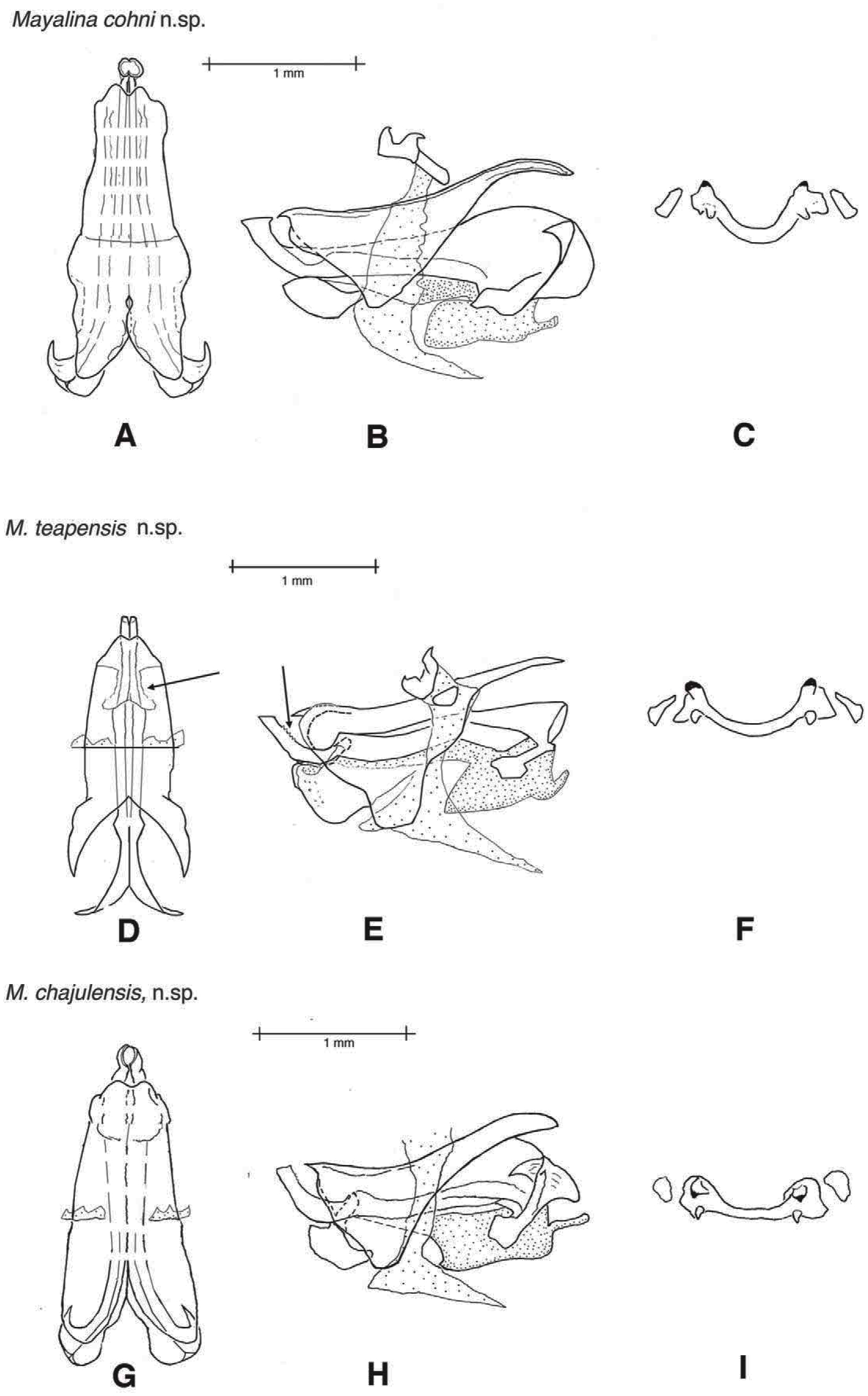

Phallus (Fig. 4). Epiphallus (Fig. 4 C, F, I) a wide thin bridge-like structure, with small hooked ancorae and bluntly pointed lophi; it is curved forwards in the midline, bow-shaped in dorsal view. Width of epiphallus about 50% of length of entire phallic complex, noticeably larger than in the Rhicnoderma group. Oval sclerites present, quite large. Ventrolateral sclerites probably absent (see below). The ectophallus is robust and dominates the structure of the phallus; cingular apodemes short and flat, pointed or rounded at the tips (Fig. 4A,D,G). The cingular rami are wide and almost encapsulate the endophallus; they meet in the ventral midline but do not fuse there. In the dorsal midline the cingulum is smooth and flattened and ends posteriorly in a projecting forked zygoma, which slightly overhangs the aedeagal valves. The lateral posterior margins of the cingulum are complexly infolded and abut the endophallus at the level of its very reduced flexure (arrowed in Fig. 4D). The endophallic apodemes are short, laterally flattened and widely divergent. The gonopore process is robust and spatulate, the ejaculatory and spermatophore sacs relatively large. The mid part of the endophallus consists of two narrow laterally flattened bars; at their posterior ends they form a poorly developed flexure, and end in upwardly curved aedeagal sclerites which project behind the zygoma. In some species the dorsal margin of the aedeagal sclerites is finely toothed (arrowed in Fig. 4E). Ventral to them are another pair of sclerotised “aedeagal valves”, which however seem to be entirely derived from ectophallic sheath; their position inside (i.e., medial to) the ectophallic rami suggests they cannot be derived from lateroventral sclerites of epiphallic origin. The dorsal edge of these valves fuses with the lower margin of the (endophallic) aedeagal sclerites.
In the three species examined to date, the phallus shows rather little variation.
Coloration.—Chiefly monochrome brown, mostly devoid of distinct pattern. Males often with a poorly defined pale stripe on lateral lobes of pronotum, weakly present on genae below the eyes, tapering rearwards and slanting upwards and backwards on the lobes towards the metanotum. There is usually a small dark spot on the outer dorsal area of the hind femur, at about midlength, and the inner surface of the hind femur is black or dark brown basally. Many of the tubercles which ornament the cuticle are of a lighter color than the rest of the integument, giving the insect a speckled appearance. The underside of the thoracic and abdominal segments is usually black or dark brown, especially in females.
Mayalina differs from Cristobalina in the following characters:
The mouthparts are not in the normal (orthognath) position, but instead are rotated backwards, forming almost a right angle with the face. The outer surface of the labrum thus comes to lie almost horizontally below the head, and is not visible in frontal view.
The ovipositor valves of the female are somewhat regressed, and covered completely or almost completely by the supra-anal plate.

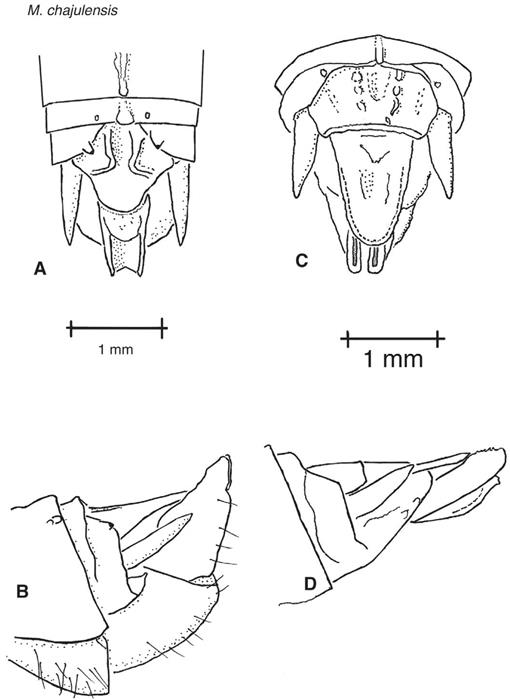

The male subgenital plate is weakly bifid at its tip (Fig. 3A,B).
Prosternai process deeply bifid, forming two well-separated pointed lobes (Fig. 2).
Medial carina of the pronotum is prominently crested and toothed, highest in the prozona. (This differentiates it from Cristobalina and Lempira where cresting is higher in the metazona.)
Medial carina of female abdominal segments prominent, ending in posteriorly rounded knobs, but not prolonged into acute teeth on the posterior segmental margins as in Cristobalina.
The pronotum in lateral view is much less sellate in form.
There are no elytral rudiments.
The combination of the rotated mouthparts and the completely bifid prosternai process is unique and makes the genus very readily identifiable.
Mayalina is currently known from three localities, one from near Teapa on the Tabasco/Chiapas border (Mexico) (UMMZ), one from El Sumidero, central Chiapas (Mexico) (UMMZ), and one from Chajul in the adjoining region of northern Guatemala (MNHN). Only a single pair is available from each locality; there is thus no way to assess the variability found in each, but the differences in phallic structure (Fig. 8) make it likely that three separate species are represented. They differ little in their external characters.

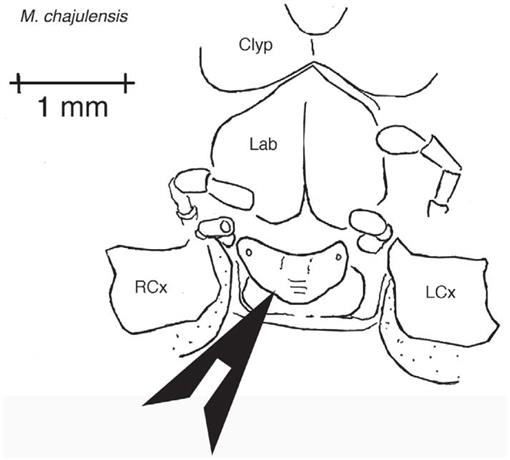

Fig. 2.
Mayalina chajulensis n. sp. Prosternai process (arrowed), oblique ventral view. RCx, LCx, right and left prothoracic coxae. Lab, labrum. Clyp, Clypeus.
Species descriptions
1. Mayalina cohni n. sp.
Holotype male.—MEXICO: Chiapas: El Sumidero, 13.5 miles N. of Tuxtla Guttierez (sic = Gutierrez), 13. October 1961. (Hubbell, Cantrall, Cohn: their site number 159). UMMZ.
Allotype female.—Same data as holotype.
Etymology.—Named for one of the original collectors of the genus, the eminent orthopterist Dr. Theodore Cohn.
The smallest of the three known species of the genus, male less than 18 mm long, female less than 22 mm (see Table of dimensions). The general color is a dull reddish brown, the male has a paler stripe on the pronotal lobe (see Fig. 1, Plate 1). The inner face of the hind femur is blackish proximally, and there is a small dark spot on the outer dorsal face at about half length.
The dorsal margin of the aedeagal sclerites is ornamented with small teeth (arrowed in Fig. 4E). The SAP completely covers the ovipositor valves in dorsal view.
2. Mayalina teapensis n. sp.
Holotype male.—MEXICO: Chiapas/Tabasco border: 8 mi W. of Teapa on Pichucalco rd. (150′), 9. Sept. 1959 1961. (Cantrall, I.J. & Cohn, T.J.: their site number 90). UMMZ Michigan.
Allotype female.—MEXICO: Tabasco: 3 mi NE. of Teapa, 27 October 1961. (Hubbell, S.P., & Cohn, T.J.: their site number 180). UMMZ Michigan.
Etymology.—Derived from the name of the type locality.
The phallus (Fig. 4A) differs from that of the other 2 known species in having the cingular apodemes pointed rather than rounded, and in the reduced structure of the terminal flanges of the endophallic apodemes. The aedeagal sclerites are smooth, devoid of small teeth on their dorsal edges. Sexual dimorphism more pronounced than in the other 2 known species, the female is relatively larger, Lm/Lf = 0.69, as opposed to 0.81 for the other spp. The female is also more brightly colored than in other species, with dull orange stripes running behind the eyes from the lower edge of each gena to meet on the disc of the pronotum. The ovipositor valves protrude slightly beyond the tip of the SAP.
3. Mayalina chajulensis n. sp.
Holotype male.—GUATEMALA: Prov. El Quiche: Selva Lacandona, Chajul, 6–13 November 1986. (Amedegnato, C. & Poulain, S.). MNHN.
Allotype female.—Same data as holotype.
Etymology.—Derived from the name of the type locality.
Male furcula better developed than in other spp. (Fig. 3A). Epiphallus (Fig. 4I) straighter, less bowed, than in other spp. Dorsal edges of aedeagal endophallic sclerites ornamented with a very few small teeth, many fewer than in M. cohni. Ends of cingular apodemes broadly rounded.
The ovipositor valves protrude slightly beyond the tip of the SAP (Fig. 3C).
5. Hylaezentia gen. nov.
Etymology.—Compounded from the “Hylea”, the Amazonian floodplain forest, and Mezentia, the oldest genus of this clade.
Type species.—Mezentia acanthopyga Rehn, 1938.
Diagnosis.—Closely similar to Mezentia and Andeomezentia. The following characters apply to all three genera:
Brachypterous, tympanate insects of medium to large size.
Prosternai process roughly cylindrical, blunt, not transverse.
Inner spines of hind tibia very strong and recurved.
Last abdominal tergite of male heavily modified, inflated, the outer corners often produced transversely, the posterior margin decorated with multiple black spines.
Male supra-anal plate triangular or sub rectangular.
Male subgenital plate sharply tapering to a rounded point, projecting well beyond the supra-anal plate. Female subgenital plate decorated with bosses or ridges.
In Hylaezentia the male cercus is recurved, wide and flat, but without an internal apophysis. Pronotum cylindrical, metazona not modified. Hylaezentia differs from Mezentia most obviously in that the metazona of the pronotum is normal, not inflated, and from Andeomezentia in that the male cercus lacks a large internal apophysis. The male subgenital plate is longer and more tapering than in the other two genera, thus explaining Rehn's specific name.
Apart from H. acanthopyga (Rehn, 1938) from the Brazilian Amazon, there are several other undescribed species (MNHN), all from the Amazon floodplain, ranging from French Guyana through the Brazilian Amazon to Iquitos, Peru.
Cladistic analysis
We have no molecular data on the tribe. As in all “phylogenetic” analyses of morphological data, the assumption is made that morphological similarity corresponds to genetic relatedness. However, as most recently discussed by Wood & Harrison (2011) this assumption can be severely weakened by homoplasy, especially when the different lineages evolve in similar ecological niches, as is indeed the case with the Bactrophorini. Caveat emptor!

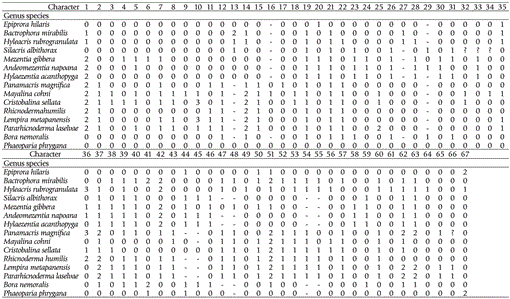

Dr. Amedegnato selected and tabulated the following 67 morphological characters: 1–36 are somatic, the remaining 31 are phallic. Thirteen of the 67 are parsimony uninformative: these are asterisked in the list below.
Her tabulation was originally generic only, giving no indication of which species she examined. However, the current genera of the Bactrophorini are very homogenous, and it is unlikely that the different species are polymorphic for the characters she selected. As current opinion in phylogenetics strongly favors the use of named species as terminal taxa (see e.g., Prendini 2001), we have substituted representative species of each genus, to which the matrix descriptions completely apply. In the case of South American species previously described from Paris by CA or M. Descamps we have used their generic type species: for Central American genera we have used species of which we had adequate amounts of material to check the characters.
Characters
1. Fastigium of the vertex: UNORDERED
2. Interocular space: UNORDERED
3. Eyes shape: UNORDERED
4*. Pronotum shape: UNORDERED
0. Normal.
1. Selliform. Mezentia, Cristobalina.
5. Pronotal sulci: UNORDERED
6*. Posterior part of the pronotum: UNORDERED
0. Unmodified.
1. Modified behind the 2nd sulcus. Only Mezentia.
7. Development of the 3rd sulcus: UNORDERED
8. Development of the 2nd sulcus: UNORDERED
0. Normal.
1. Obsolete. Cristobalina/Mayalina, Lempira & Pararhicnoderma.
9*. Median carina of the pronotum (Male): UNORDERED
0. Obsolete.
1. Nodulose. Mayalina only.
10. Median carina of the pronotum (Female): UNORDERED
0. Obsolete.
1. Gibbose or nodulose in the prozona and metazona. Mayalina, Pararhicnoderma.
2. Gibbose or elevated only in the prozona. No examples.
3. Gibbose or elevated only in the metazona. Cristobalina/ Lempira.
11. Mesonotum: UNORDERED
0. Hidden under the pronotum.
1. Clearly visible, at least in part. Panamacris, Pararhicnoderma, Lempira, Rhicnoderma. Due to very short pronotum.
12. State of flight organs: UNORDERED
13. Color of the wings: UNORDERED
14. Shape of mesosternal space: UNORDERED
15. Shape of the prosternai process: UNORDERED
16*. Bifurcation of the prosternai spine: UNORDERED
0. Absent or weak.
1. Strong. Mayalina only.
17*. Ventral carinae of the hind femora: UNORDERED
18*. External surface of the hind femora: UNORDERED
19*. Dorso-internal area of hind femora: UNORDERED
20. Specialisation of internal spines of the hind tibiae: UNORDERED
21. Second tarsal segment of hind tibiae: UNORDERED
22. Tympanal organ: UNORDERED
23. Hind border of the last abdominal tergite of male: UNORDERED
0. Normal.
1. Modified, with black thickenings. Silacris, Mezentia genus group.
